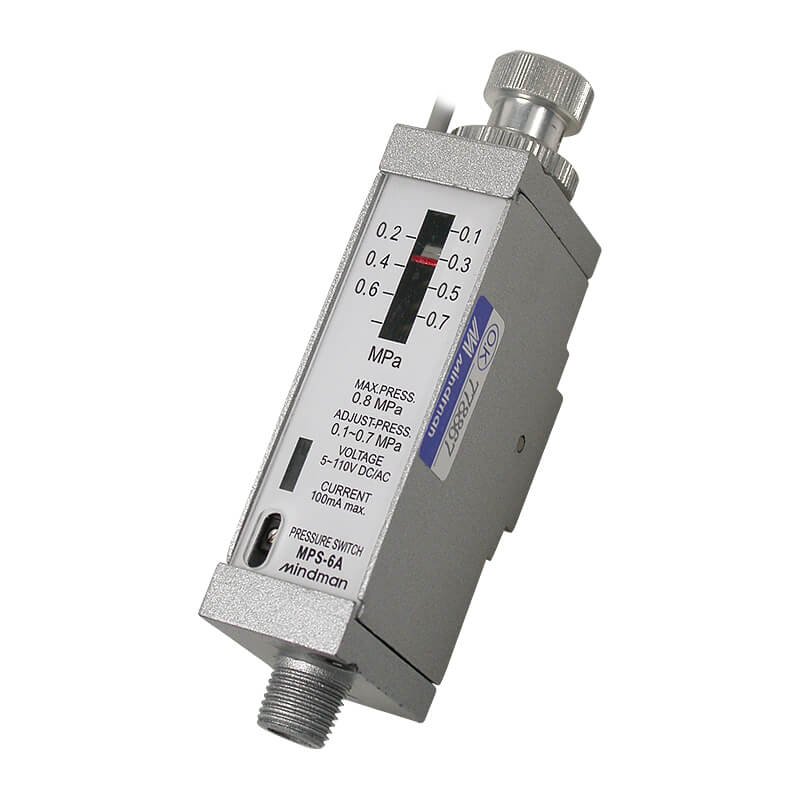

Mindman MPS Series: Pressure Sensor – MPS-6A
SKU: MPS-6A
$81.00
Pressure Sensor, Max Operating Pressure: 0.8MPa, Set Pressure Range: 0.1~0.7MPa, Sensor Type: RCE2 Reed Actuated Type/N.O. Type, Piping Connection Method: R1/8 Pipe Thread Connection Continuous
10000 in stock
Features
● Max Operating Pressure: 0.8 MPa,
●Guaranteed withstand pressure: 1 MPa.
Specification
| Item | Specification |
|---|---|
| Fitting method | R1/8 (for pipe-thread fitting), O-ring: S4 (for O-ring fitting) |
| Operating pressure range | 0.8 MPa |
| Proof pressure | 1 MPa |
| Pressure setting range | 0.1~0.7 MPa |
| Ambient temperature | −5~+60°C (No freezing) |
| Operation output | Normal open ON (red LED lighting up) above value |
| Sensor switch | RCE2 Reed switch / normal open Voltage range: 5~110V DC/AC Max. current: 100mA |
| Weight | 185 g, 189 g (R type) |
