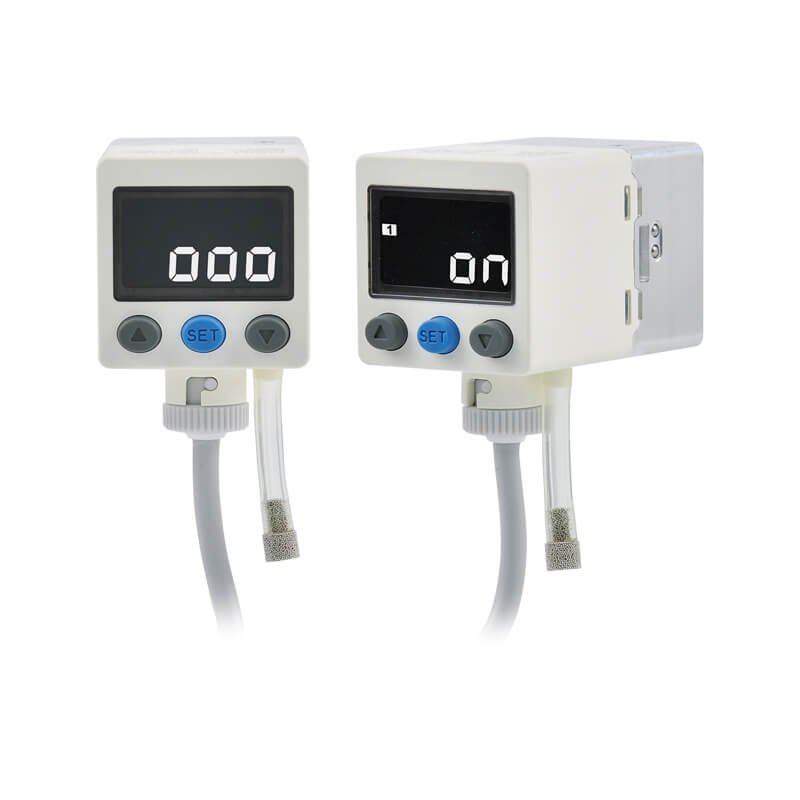

Mindman MPGS Series: Gap Sensor – MPGS01-G-04-F1C
SKU: MPGS01-G-04-F1C
$180.00
Gap Sensor, Detection Distance: 0.01~0.10mm, Output Type: 1 PNP Output, Port Diameter: Rc1/8″Pipe Thread Fitting
10000 in stock
Features
● High-contrast LCD display
● Protection rating: IP65
● Detection Distance: 0.01 ~ 0.10 mm
● Repeatability: ±5 ¦μm
Specification
| Item | Specification |
|---|---|
| Detection distance | 0.01~0.10 mm |
| Operating pressure range | 250~350 kPa |
| Withstand pressure | 600 kPa |
| Fluid | Clean air, non-corrosive / non-flammable gas |
| Power supply voltage | 12~24V DC ±10%, ripple (P-P) ≤10% |
| Current consumption | ≤20 mA |
| Consumption flow rate | ≤16 L/min @ 300 kPa |
| Repeatability | ±5 µm |
| Hysteresis | Adjustable 1~30 digits |
| Output short circuit protection | Yes |
| Display | 3½ digital, 7-segment LCD display (white) (sampling rate: 5 times/sec.) |
| Switch-on indicator | White indicator 1: OUT |
| Lead wire | ø4 oil-resistance cable (PVC) - 26 AWG (0.15 mm²) - 3 cores |
| Weight (with 2 meter lead wire) | Approx. 115 g |
