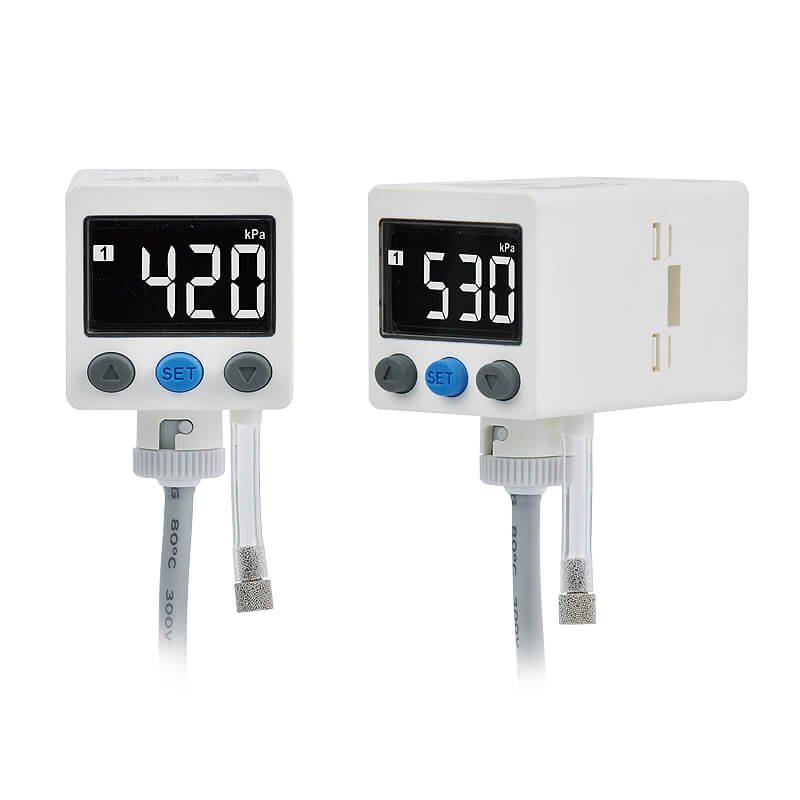

Mindman MPDS Series: High Differential-Pressure Sensor – MPDS-P-02-M5
SKU: MPDS-P-02-M5
$94.00
High Differential-Pressure Sensor, Pressure Type: Positive Pressure(0~1000k Pa), Output Type: 1 NPN Output+RS485, Port Diameter: M5 Female Thread
10000 in stock
Features
● Digital LCD display
● Protection rating: IP65
● Pressure Range: 0 ~ 1.000 MPa
● Communication protocol RS485 Modbus RTU
● High-resolution mode, 10¡Á finer resolution
● Switch output selectable NPN/PNP
Specification
| Item | Specification |
|---|---|
| Rated pressure range | −1000~1000 kPa |
| Operating pressure range | 0~1000 kPa |
| Withstand pressure | 1200 kPa |
| Fluid | Filtered air, non-corrosive / non-flammable gas |
| Power supply voltage | 12~24 V DC ±10%, ripple (P-P) ≤10% |
| Current consumption | ≤20 mA |
| Communication interface | RS485 RTU |
| Port size | M5: M5 female thread |
| Lead wire | ø4 oil-resistance cable (PVC) - 26 AWG (0.15 mm²) - 5 cores |
| Weight (with 2 meter lead wire) | Approx. 104 g |
