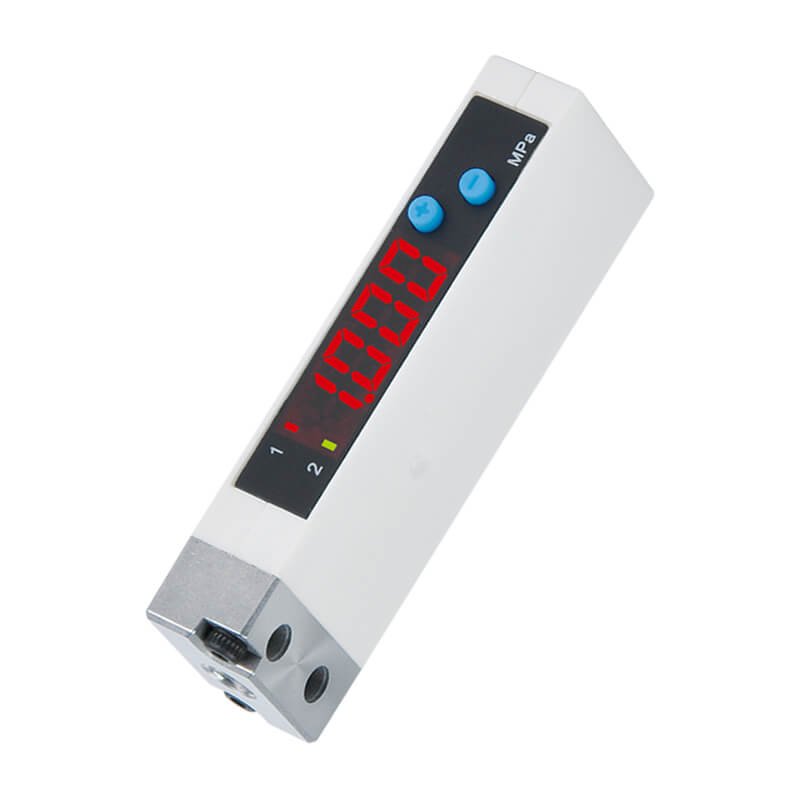

Mindman MP90 Series: Slim Pressure Sensor – MP90P-030-M5
SKU: MP90P-030-M5
$61.00
Slim Pressure Sensor, Pressure Type: Positive Pressure(-0.1~1.0MPa), Output Type: 2 PNP Output+Analog Output(1~5V), Connection Diameter: M5¡Á0.8
10000 in stock
Features
● 2 outputs & linear analog output (1~5 V)
● Compact 10 mm size
● Key-lock function
● Pressure units convertible:
kPa, MPa, kgf / cm2, bar, psi, inHg, mmHg
● Oil-free/copper-free versions for semiconductor processes available; contact sales.
Specification
| Item | Specification |
|---|---|
| Rated pressure range | 0~1.0 MPa (positive) −101.3~0.0 kPa (vacuum) −100.0~100.0 kPa (compound) |
| Setting pressure range | −0.1~1.0 MPa (positive) −101.3~10.0 kPa (vacuum) −101.0~101.0 kPa (compound) |
| Allowable pressure | 1.5 MPa (positive) 500 kPa (vacuum / compound) |
| Fluid | Filtered air, non-corrosive / non-flammable gas |
| Power supply voltage | 12 to 24V DC ±10%, ripple (P-P) 10% or less |
| Current consumption | ≤40mA (with no load) |
| Switch output | 2 NPN: open collector 2 outputs, max. load current 125 mA, max. supply voltage 30 V DC, residual voltage ≤1.5 V 2 PNP: open collector 2 outputs, max. load current 125 mA, max. supply voltage 24 V DC, residual voltage ≤1.5 V |
| Repeatability | ±0.2% F.S. ±1 digit |
| Hysteresis | Hysteresis mode: adjustable Window comparator mode: fixed (3 digits) |
| Response time | ≤2.5ms (chattering-proof function: 25ms, 100ms, 250ms, 500ms, 1000ms and 1500ms selectable) |
| Output short circuit protection | Yes |
| Display | 4 digit, 7-segment LED display (red) (sampling rate: 5 times/sec.) |
| Indicator accuracy | ±2% F.S. ±1 digit (ambient temperature: 25±3°C) |
| Switch-on indicator | Indicator red: OUT1 & indicator green: OUT2 |
| Analog output (voltage) | Output voltage: 1~5 V ±2.5% F.S. (within rated pressure range) Linearity: ±1% F.S.; output impedance: about 1 kΩ |
| Enclosure | IP40 |
| Ambient temp. range | Operation: 0~50°C, storage: −10~60°C (no condensation or freezing) |
| Ambient humidity range | Operation / storage: 35~85% RH (no condensation) |
| Withstand voltage | 1000V AC in 1-min. (between case and lead wire) |
| Insulation resistance | ≥50 MΩ (at 500V DC, between case and lead wire) |
| Vibration | Total amplitude 1.5mm or 10G, 10Hz-55Hz-10Hz scan for 1 minute, two hours each direction of X, Y and Z |
| Shock | 980 m/s² (100G), 3 times each in direction of X, Y and Z |
| Temperature characteristic | ±2% F.S. of detected pressure (25°C) at temp. range of 0~50°C |
| Port size | M5 |
| Lead wire | ø3.8 oil-resistance cable (PVC) - 26 AWG (0.15 mm²) - 5 cores |
| Weight (with 2 meter lead wire) | Approx. 53 g |
