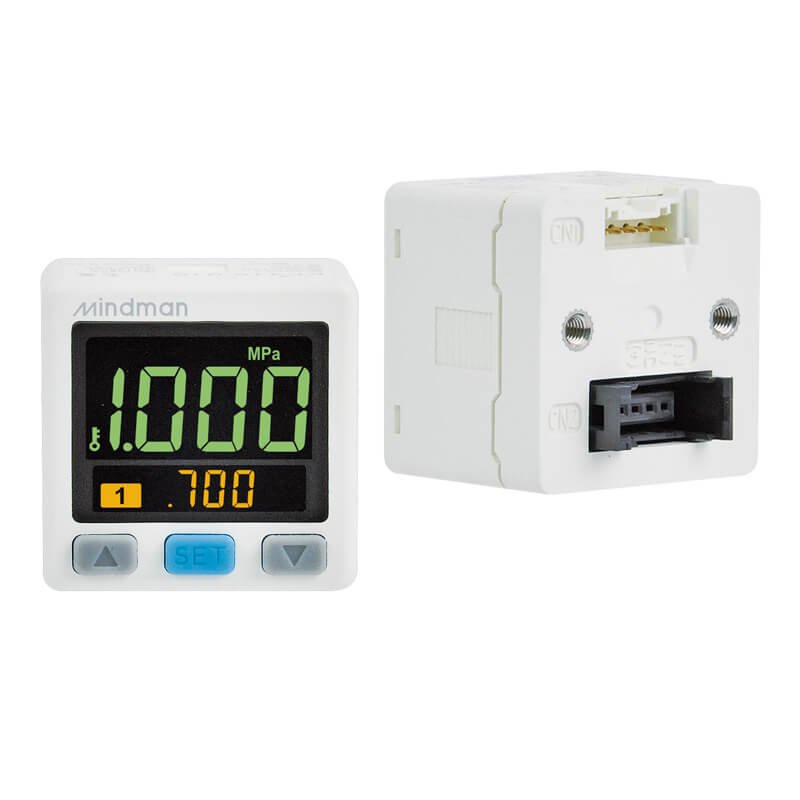

Mindman MP400 Series: Multi-Function Controller – MP420-030
SKU: MP420-030
$165.00
Multi-Function Controller, Output Channel: 1 Channel, Sensor Signal Input: Current Input(4~20m A), Output Spec: 2 PNP Output+Analog Output(1~5V)
10000 in stock
Features
● 3-color digital LCD display
● Pressure units convertible: kPa, MPa, kgf/cm2, bar, psi,
inHg, mmHg
● Set values can be shown directly in the sub-window
● Key-lock display
● Linear analog output: 1~5 V or 4~20 mA
● Sensor input: 1~5 V or 4~20 mA
● 12 pressure ranges available
Specification
| Item | Specification |
|---|---|
| Power supply voltage | 12~24V DC ±10%, ripple (P-P) ≤10% |
| Current consumption | ≤40 mA (with no load) |
| Sensor input | 1~5V or 4~20 mA |
| Repeatability | ±0.1% F.S. ±1 digit |
| Output short circuit protection | Yes |
| Indicator accuracy | ±1% F.S. ±1 digit (ambient temperature: 25 ±3°C) |
| Switch-on indicator | Orange indicator 1: OUT1 & orange indicator 2: OUT2 |
| Temperature characteristic | ±0.5% F.S. of detected pressure (25°C) at temp. range of 0~50°C |
| Lead wire | ø4 oil-resistance cable (PVC) - 26 AWG (0.15 mm²) - 5 cores |
| Weight (with 2 meter lead wire) | Approx. 67 g |
