Mindman MP30 Series: High-Precision Digital Pressure Sensor – MP30C-01-F2

Name: Mindman MP30 Series: High-Precision Digital Pressure Sensor - MP30C-01-F2 - Mindman
SKU: MP30C-01-F2
Price: 72.00 USD
Availability: InStock

SKU: MP30C-01-F2

$72.00

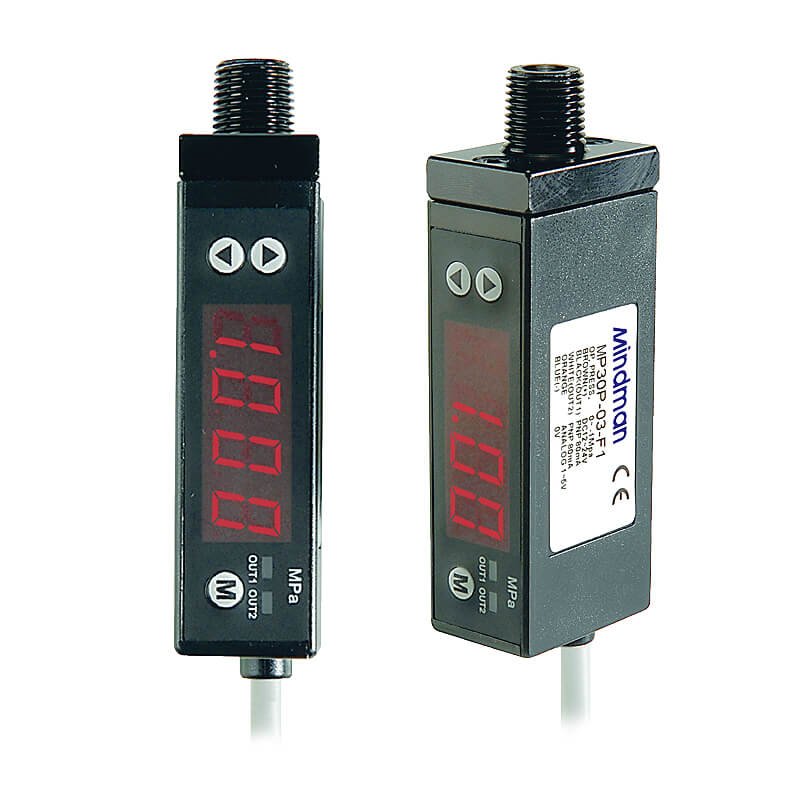

High-Precision Digital Pressure Sensor, Pressure Type: Combined Pressure(-100.0~100.0k Pa), Output Type: 2 NPN Output+Analog Output(1~5V), Port Diameter: F2: NPT1/8″, M5¡Á0.8, Wire Length / Connector: 2M Wire

10000 in stock

Click to view the Mindman MP30 catalog.

Features
● Pressure Range: Combined Pressure -100.0~100 k Pa
Positive Pressure 0~1 MPa
Negative Pressure -101.3~0 k Pa
● One switch output and one linear output.
● Adjustable hysteresis, high precision, low price.

Specification

Item	Specification
Port size	F1: R1/8, M5; F2: NPT1/8, M5; F3: G1/8, M5
Rated pressure range	Compound: −100.0~100.0 kPa Vacuum: −101.3~0.0 kPa Positive: 0.00~1.00 MPa
Operating / setting pressure range	Compound: −100.0~100.0 kPa Vacuum: −101.3~10.0 kPa Positive: −0.10~1.00 MPa
Medium	Air, non-corrosive gases, incombustible gases
Proof pressure	300 kPa (compound, vacuum) 1.5 MPa (positive)
Power supply voltage	12 to 24VDC ±10%, ripple (P-P) 10% or less
Response time	≤2.5ms (chattering-proof function: 24ms, 192ms and 768ms selections)
Switch output	NPN or PNP open collector 2 outputs Max. load current: 100mA Max. supply voltage: 30VDC Residual voltage: ≤1V (load current 80mA)
Repeatability (switch output)	≤±0.2% F.S. ±1 digit
Current consumption	≤55mA
Output short circuit protection	Yes
7-segment display	3½ digit, 7-segment LED display (red) (sampling rate: 5 times/sec.)
Indicator	Green indicator: OUT1 & red indicator: OUT2
Ambient temp. range	Operation: 0~50°C, storage: −20~60°C (no condensation or freezing)
Ambient humidity range	Operation / storage: 35~85% RH (no condensation)
Withstand voltage	1000VAC in 1-min (between case and lead wire)
Insulation resistance	50 MΩ min. (at 500VDC, between case and lead wire)
Vibration	Total amplitude 1.5mm, 10Hz-55Hz-10Hz scan for 1 minute, two hours each direction of X, Y and Z
Shock	980 m/s² (100G), 3 times each in direction of X, Y and Z
Temperature characteristic	≤2% F.S. of detected pressure (25°C) at temp. range of 0~50°C
Lead wire	ø4 oil-resistance cable (PVC) - 26 AWG (0.15 mm²) - 5 cores (01/03), 4 cores (02/04)
Weight	Approx. 65 g (with 2-meter lead wire), approx. 35 g (with meter connector)
