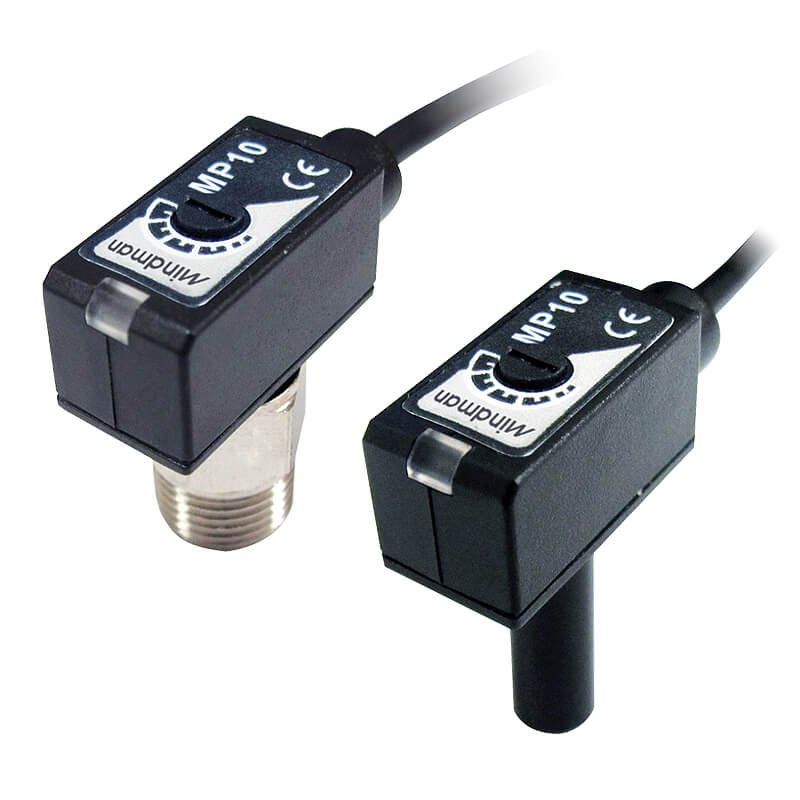

Mindman MP10 Series: Pressure Sensor – MP10C-01-F1-C

Name: Mindman MP10 Series: Pressure Sensor - MP10C-01-F1-C - Mindman
SKU: MP10C-01-F1-C
Price: 43.00 USD
Availability: InStock

SKU: MP10C-01-F1-C

$43.00

Pressure Sensor, Pressure Type: Combined Pressure(-100~100k Pa), Output Type: Analog Output(1~5V), Port Diameter: R1/8″, M5¡Á0.8, Wire Length / Connector: M8 3 Pin Male Fitting

10000 in stock

Click to view the Mindman MP10 catalog.

Features
● Easy to use; mounts directly on a quick coupler.
● Ultra-compact: 26¡Á10¡Á10.4 mm.
● Set Pressure Range
● Sensor: Negative Pressure (0~ ¨C101.3 k Pa)
Positive Pressure (0~0.6 MPa)
● Analog Output: Combined Pressure (¨C100~100 k Pa)
Compound Pressure (¨C101~500 k Pa)
Low Pressure (0~100 k Pa)
Negative Pressure (0~¨C101.3 k Pa)
Positive Pressure (0~1.0 MPa)

Specification

Item	Specification
Dimensions	26×10×10.4 mm
Operating / setting pressure range	Vacuum: 0~−101.3 kPa, Positive: 0~0.6 MPa
Medium	Air, non-corrosive / non-flammable gas
Proof pressure	Vacuum: 0.6 MPa, Positive: 1.5 MPa
Response time	Approx. 1ms
Current consumption	10mA max.
Sensor type	NPN or PNP
Output short circuit protection	Yes
Setting method	Adjusting by VR
Indicator	Red LED turns ON
Enclosure	IP40
Ambient temp. range	Operation: 0~60°C, storage: −20~70°C (no condensation or freezing)
Ambient humidity range	Operation / storage: 35~85% RH (no condensation)
Vibration	Total amplitude 1.5mm, 10Hz-55Hz-10Hz scan for 1 minute, two hours each direction of X, Y and Y
Shock	980 m/s² (100G), 3 times each in direction of X, Y and Z
Piping method	Push-in tube or thread-in
Lead wire	Oil-resistance cable, 3 wires (0.18 mm²), φ2.6mm
Weight	Approx. 50 g (with 3-meter lead wire)

Order Example

MP10 Order Example

Mindman MP10 Series: Pressure Sensor – MP10C-01-F1-C
