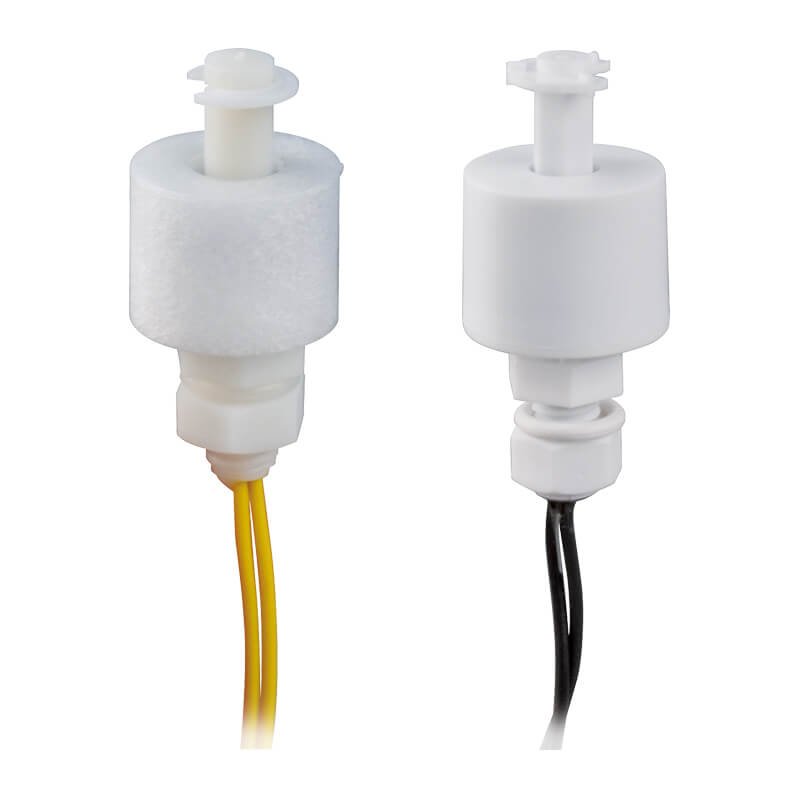

Mindman MLF Series: Level Switch(Applicable Lubricator) – MLF400-PP-M8-1M
SKU: MLF400-PP-M8-1M
$40.00
Level Switch(Applicable Lubricator), Level Switch(Applicable MAL401/MAL403/MAL501), Applicable MAL401/MAL403/MAL501 Series
10000 in stock
Features
●Model: MLF300, MLF400, fluid: turbine oil ISO-VG32 (specific gravity 0.85+),
●Max operating voltage: 90 max, 200 max VDC
Specification
| Item | Specification |
|---|---|
| Model | MLF300, MLF400 |
| Actuation | Switch turns OFF when float rises (oil level detected), and turns ON when float lowers (no oil level detected) |
| Medium | Turbine oil ISO-VG32 (specific gravity: above 0.85) |
| Operating pressure | Max. 1 MPa |
| Contact rating | Max. 10 W |
| Switching voltage | Max. 90, Max. 200 VDC |
| Switching current | Max. 0.1, Max. 0.5 A |
| Electrical termination | MLF300: lead wire UL1007 22AWG / PVC wire MLF400: lead wire UL1430 22AWG / PE wire |
| Weight | 14.4 g, 17.35 g |
