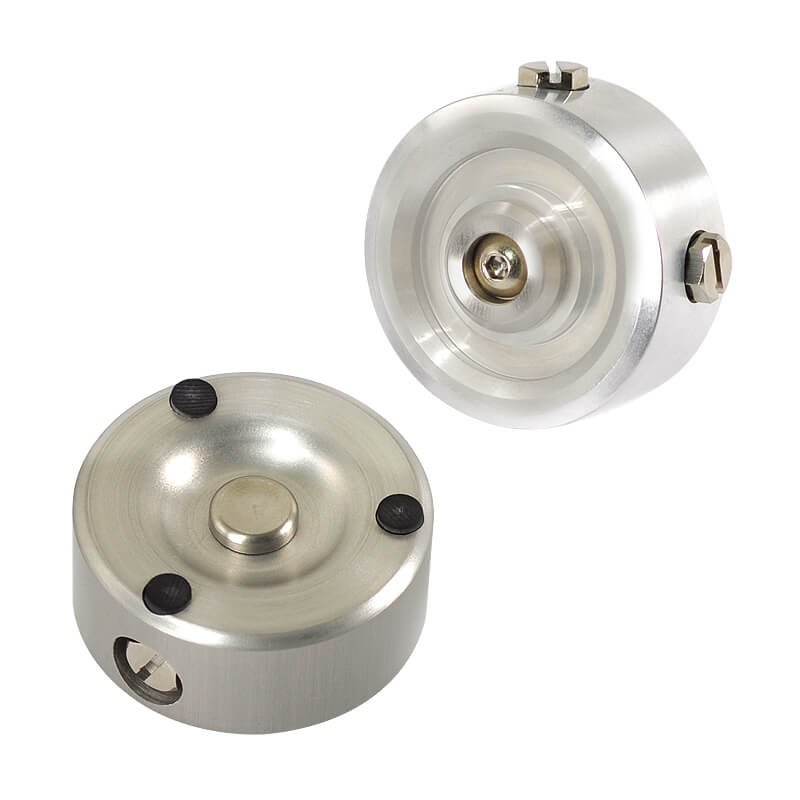

Mindman MHPSC Series: Non-Contact Suction Cup – MHPSC-40-U
SKU: MHPSC-40-U
$137.00
Non-Contact Suction Cup, Size: 40, Type: Flat Sliding Surface Type, Port Diameter: M5, Operating Pressure Range: 0.2~0.7MPa, Operating Fluid: Compressed Dry Air(Filter40¦Ì)
10000 in stock
Features
●This uses the Bernoulli effect:
positive pressure passes through a suitable structure and exits as low pressure,
creating a vacuum between the object and cup to lift the object.
Specification
| Item | Specification |
|---|---|
| Port size | 20, 30, 40, 60 |
| Size | M3, M5 |
| Medium | Dry air filter 40 u |
| Operating pressure range | 0.2~0.7 MPa |
| Consumption in air (※) | 100~210 1/min |
| Lifting force (※) | 0.9~6 N |
| Ambient temperature | +5~+60°C |
| Level of noise | 25 dB |
| Material | Aluminum A5056 and stainless steel |
| Weight | 10~124 g |
| Remark | (※): Indicative value. For sizes 20 and 30: pressure of 0,5 MPa with an air supply by tube φ2,5x4 length: 1m. For sizes 40 and 60: pressure of 0,5 MPa with an air supply by tube φ4x6 length: 1m. |
