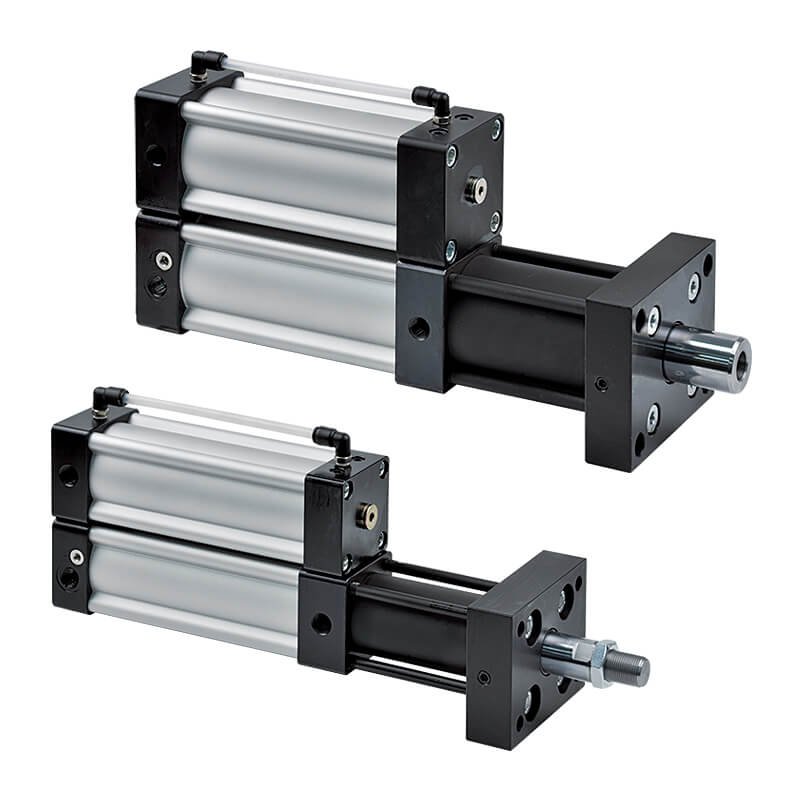

Mindman MHPD Series: Booster Cylinder – MHPD-10T¡Á75-10

Name: Mindman MHPD Series: Booster Cylinder - MHPD-10T¡Á75-10 - Mindman
SKU: MHPD-10T¡Á75-10
Price: 1444.00 USD
Availability: InStock

SKU: MHPD-10T¡Á75-10

$1,444.00

Booster Cylinder, Boosted Thrust: 10T, Total Stroke: 75mm, Boost Stroke: 10mm, Shaft End Type: Inner-Bore Type

10000 in stock

Click to view the Mindman MHPD catalog.

Features
● This cylinder combines a booster and hydraulic cylinder, needing only an air source to
is all that is required.
● Offers high hydraulic output without the high temperature and noise
drawbacks. More economical, safe, and efficient than a hydraulic system.

Specification

Item	Specification
Pressure boost model	1T, 3T, 5T, 8T, 10T
Total stroke (mm)	50, 75, 100, 150, 200
Medium	Filtered air with or without lubrication
Operating pressure range	0.3~0.8 MPa
Working stroke	5, 10, 15, 20 mm
Ambient temperature	−10~+60°C (No freezing)

Order Example

MHPD Order Example

Mindman MHPD Series: Booster Cylinder – MHPD-10T¡Á75-10
