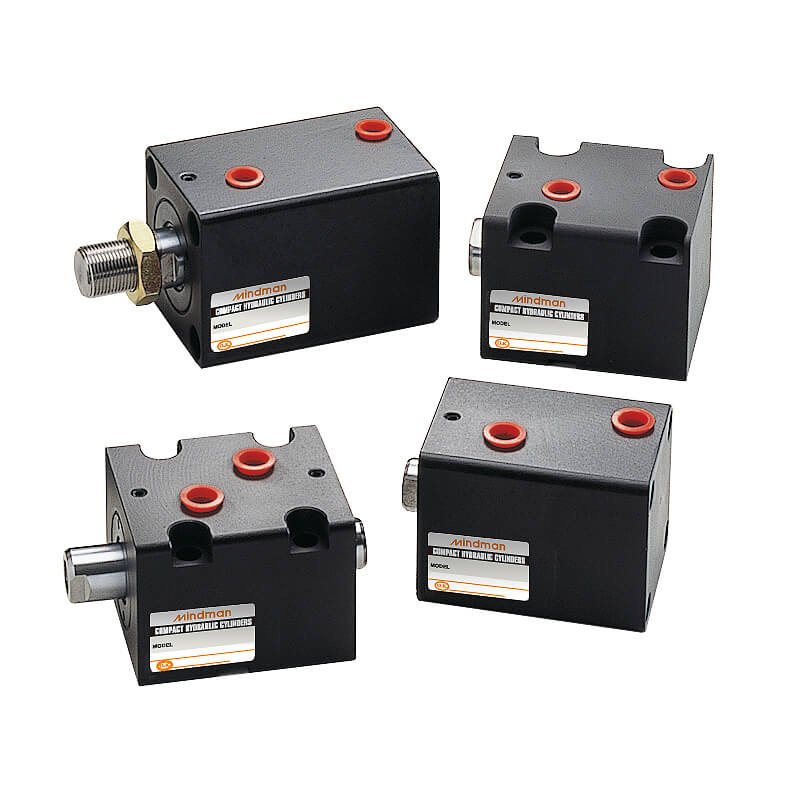

Mindman MHC Series: Compact Hydraulic Cylinder – MHCB-20-10
$68.00
Compact Hydraulic Cylinder, Mounting Type: Axial-Mount Type, Cylinder Bore: ø20, Stroke: 10mm, Shaft End Type: Single-Axis/Female Thread
10000 in stock
Features
● The compact hydraulic cylinder saves more space than ordinary ones, ideal for small machines or space-
where space is limited.
● The cylinder’s inner wall is specially machined smoother to extend service life.
● Lightweight, attractive, and sturdy design.
| Item | Specification |
|---|---|
| Tube I.D. (mm) | 20, 25, 32, 40, 50, 63, 80 |
| Standard stroke (mm) | 5~100 |
| Medium | Filtered oil |
| Max. operating pressure | 14 MPa |
| Material of cylinder barrel | Carbon steel |
| Ambient temperature | −10~+60°C (No freezing) |
