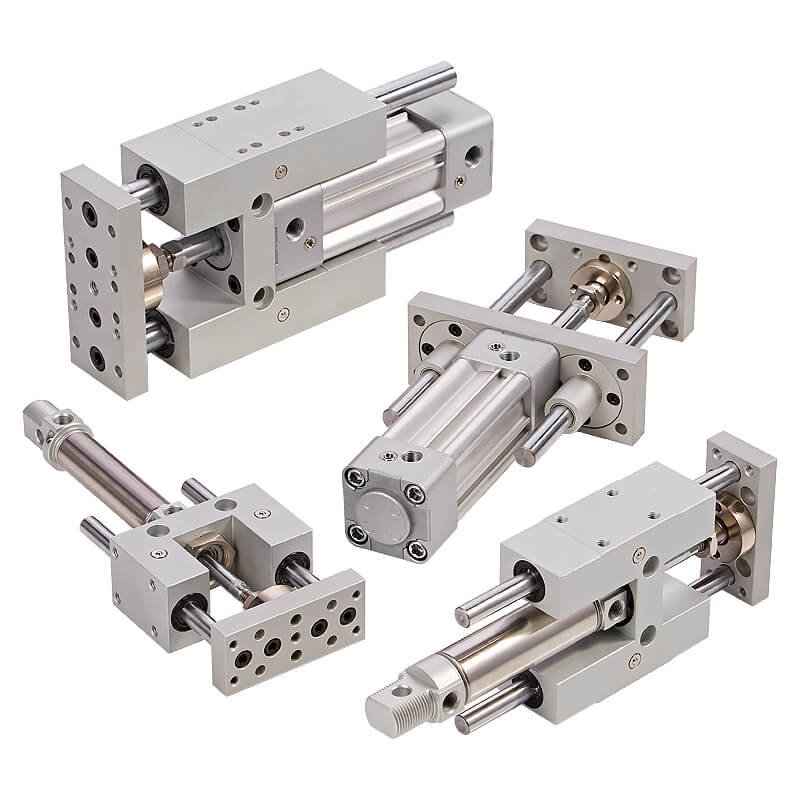

Mindman MGT Series: Twin-Guide-Rod Pneumatic Cylinder – MGTB-63-350-RP

Name: Mindman MGT Series: Twin-Guide-Rod Pneumatic Cylinder - MGTB-63-350-RP - Mindman
SKU: MGTB-63-350-RP
Price: 1143.00 USD
Availability: InStock

SKU: MGTB-63-350-RP

$1,143.00

Twin-Guide-Rod Pneumatic Cylinder, Type: Sliding Bearing Heavy-Duty Type, Cylinder Bore: ø63, Stroke: 350mm, Rear Support Plate: With Rear Support Plate

10000 in stock

Click to view the Mindman MGT catalog.

Features
● The guide-rod cylinder combines ISO 6432/ISO 15552 cylinders with peripherals for excellent
resistance to rotation, torque, and lateral load.
● Four sliding or linear ball bearings allow higher load or precision.
● Saves much design, drafting, and installation time, with a simple structure.
● Compared with the MCG* series, this series offers longer strokes and larger bores.
● On ø32~?63, all four sides of the tube have embedded sensor grooves; per actual
to change the sensor mounting position.
● Always includes end-position adjustable cushioning.
● Magnet fitted across the whole series.

Specification

Item	Specification
Model	MGTK, MGTX, MGTB, MGTU
Tube I.D. (mm)	20, 25, 32, 40, 50, 63
Port size	G1/8, G1/4, G3/8
Medium	Air
Operating pressure range	0.2~0.7 MPa
Ambient temperature	−5°C~+60°C (No freezing)
Available speed range	50~750, 50~500 mm/sec
Lubrication	Cylinder: Not required; Guide (*1): Lubricating grease
Sensor switch	φ20, φ25: RDC, RQC, RDT, RQT, RCM φ32~φ63: RDT, RQT, RCI
Sensor switch holder	φ20, φ25: RC: BKC-1 (2) R*T: BKT-1 RCM: BM20, BM25 (Band)
Remark	1. Periodically refilling with the lubricating grease is required to enhance the lubricative grade and lifetime. Inject an appropriate amount of lubricating grease and move the cylinder back and forth several times to confirm smooth movement. 2. Not for R*CV angle cable.

Order Example

MGT Order Example

Mindman MGT Series: Twin-Guide-Rod Pneumatic Cylinder – MGTB-63-350-RP
