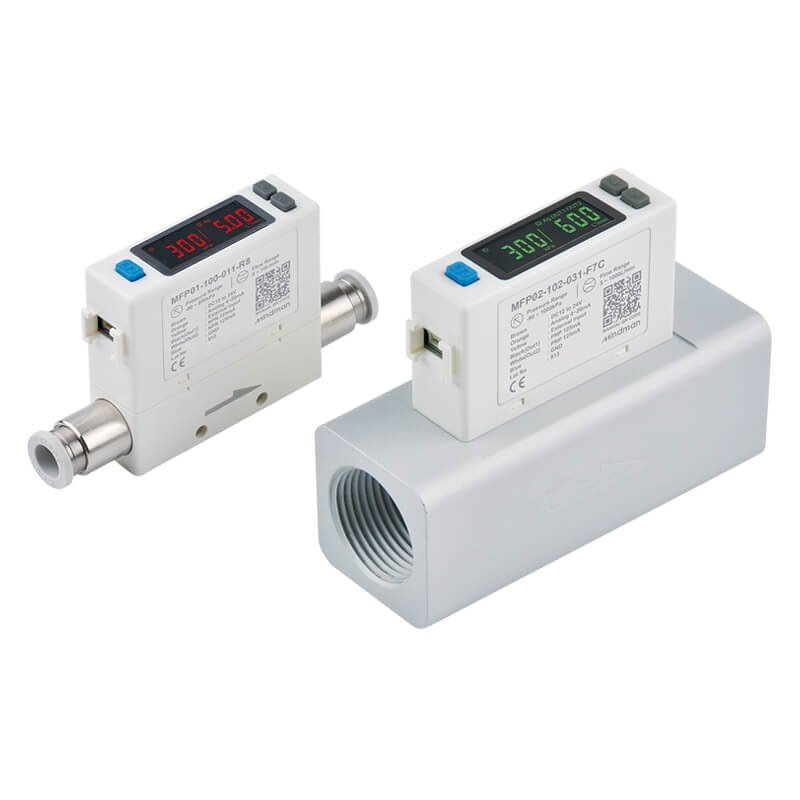

Mindman MFP01/02 Series: Digital Flow & Pressure Sensor – MFP01-005-02-F1C

Name: Mindman MFP01/02 Series: Digital Flow & Pressure Sensor - MFP01-005-02-F1C - Mindman
SKU: MFP01-005-02-F1C
Price: 412.00 USD
Availability: InStock

SKU: MFP01-005-02-F1C

$412.00

Digital Flow & Pressure Sensor, Flow Range: 500mL/min, Output Type: 2NPN Output+RS485, Port Diameter: Rc1/8″Pipe Thread Fitting

10000 in stock

Click to view the Mindman MFP01/02 catalog.

Features
● 4-digit flow/pressure display, 7-segment dual LCD
● 8-digit LCD, intuitive cumulative-flow viewing
● Real-time monitoring
● Communication protocol RS485 Modbus RTU

Specification

Item	Specification
Fluid	Dry air, N2, non-corrosive / non-flammable gas
Sensor element (Flow / Pressure)	Measured flow rate range: 005: 0~500 mL/min, 010: 0~1000 mL/min, 050: 0~5 L/min, 100: 0~10 L/min, 500: 0~50 L/min, 101: 0~100 L/min, 201: 0~200 L/min Flow direction: Unidirection Rated pressure range: −90~800 kPa
Pressure display	Display range: −100~1000 kPa
Accuracy (Flow / Pressure)	Flow guaranteed range: 2~100% F.S. Pressure guaranteed range: 0~100% F.S.
Response time (switch output)	Flow: 800 ms (50, 80, 120, 200, 400, 1500 ms selectable) Pressure: 2.5 ms (25, 100, 250, 500, 1000, 1500 ms selectable)
External input	Non-voltage input, <0.4 V, ≥30 ms
Communication interface	RS-485
Power	Power supply voltage: 12~24 V DC ±10%, ripple (P-P) ≤10% Current consumption: ≤50 mA
Lead wire	ø4 oil-resistance cable (PVC) - 26 AWG (0.15 mm²) - 6 cores
Weight (with 2 meter lead wire)	Approx. 107 g (ø6 port); approx. 110.5 g (ø8 port)

Order Example

MFP01/02 Order Example

Mindman MFP01/02 Series: Digital Flow & Pressure Sensor – MFP01-005-02-F1C
