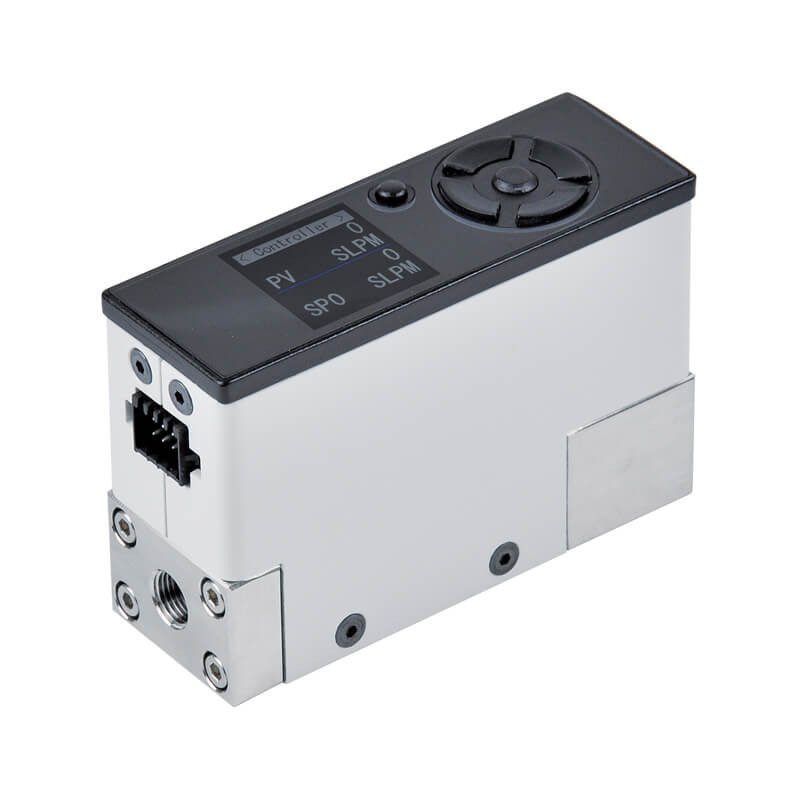

    Mindman MFCB Series: Mass Flow Controller - MFCB-200-6A-A2 A

    Mindman MFCB Series: Mass Flow Controller – MFCB-200-6A-A2 A

    SKU: MFCB-200-6A-A2 A

    $480.00

    Mass Flow Controller, Flow Range: 200L/min, Port Diameter: 1/8(Rc1/8), I/O Signal: 4~20mA+1~5V+0~10V+RS485, Operating Fluid: Air/µªÆø/º¤Æø/ÇâÆø/Ñõ»¯Ì¼Switchable

    10000 in stock

    Features
    ● TFT-LCD 65K full-color display
    ● Display adjusts to mounting direction for easy reading
    ● Response time < 0.3 s ● Analog input/output and switch output are switchable ● Communication protocol RS485 Modbus RTU ● Industries: semiconductor, laser welding, communications/IoT

    Item Specification
    Valve type Proportional solenoid valve, normally closed when power off (N.C.)
    Fluid Non-corrosive / non-flammable gas: dry air, N2, CO2, Ar
    Flow rate 200 L/min
    Display 1.3" 65K full color TFT-LCD display
    Display — Flow control Display range: 0~100% F.S.
    Min. setting scale: LPM: 1 L/min, CFM: 1 ft³/min (※1)
    Display — Pressure Display range: −101~1000 kPa
    Min. setting scale: kPa: 1, MPa: 0.001, kgf/cm²: 0.01, bar: 0.01, psi: 0.1
    Display — Temperature Display range: 0~50°C / 32~122°F (Non-freezing)
    Min. setting scale: 0.1°C, 0.1°F
    Display — Humidity Display range: 10~90% RH
    Min. setting scale: 0.1% RH
    Accuracy — Flow control (※2) Control accuracy: ±3% F.S.
    Repeatability: ±1% F.S. ±1 digit
    Temp. characteristic: ±5% F.S. (※3)
    Pressure characteristic: ±2% F.S. (※4)
    Accuracy — Pressure Indicator accuracy: ±2% F.S.
    Repeatability: ±0.1% F.S.
    Accuracy — Temperature Indicator accuracy: ±0.2°C
    Accuracy — Humidity Repeatability: ±5.5% RH
    Accuracy — Analog input and output ±1% F.S.
    Switch output NPN open collector: max. load current 200 mA, max. supply voltage 24 V DC, voltage drop ≤1.5 V
    PNP open collector: max. load current 200 mA, max. supply voltage 24 V DC, voltage drop ≤1.5 V
    Switch output — Output mode Flow control: tolerance mode, error mode
    Switch output — Response time Flow control: 0.3 s (typ.) to the setting ±2% F.S.
    Analog input and output (※5) DC 1~5 V, 0~10 V, 4~20 mA
    Communication interface RS485 Modbus RTU
    Power Power supply voltage: DC 24 V ±10%
    Current consumption: ≤300 mA
    Environment Standard operating differential pressure: 350 kPa (inlet 350 kPa, outlet 0 kPa)
    Operating differential pressure range (※6): 350~500 kPa
    Max. operating pressure (※7): 700 kPa
    Enclosure: IP40
    Working fluid temp: 5~50°C (no condensation or freezing)
    Ambient temp: operation 5~50°C; storage −10~60°C (no condensation or freezing)
    Ambient humidity: operation / storage 35~85% R.H. (no condensation)
    Accessories 2M cable
    Weight 685 g
    Remark ※1. In CFM (ft³/min), actual value equals displayed value × 0.01.
    ※2. Based on dry compressed air and measured by our standard flow meter as a reference for other gas.
    ※3. Benchmark: 25°C (temperature range 0~50°C).
    ※4. Benchmark: inlet pressure 350 kPa, outlet pressure 1 atmospheric pressure, 25°C.
    ※5. Switchable, please follow the manual for setup.
    ※6. The minimum operating differential pressure is the pressure differential required to achieve full scale flow with the secondary side released to atmosphere.
    ※7. The maximum operating pressure is the maximum primary side pressure.
