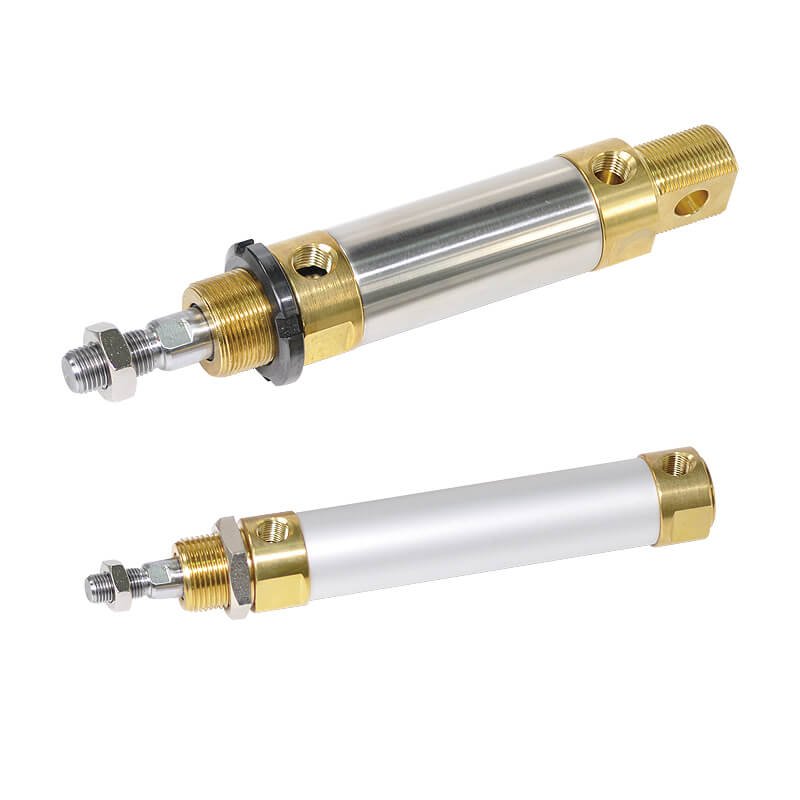

Mindman MDO Series: Sensor-Type Round Hydraulic Cylinder – MDOA-20-125-FA

Name: Mindman MDO Series: Sensor-Type Round Hydraulic Cylinder - MDOA-20-125-FA - Mindman
SKU: MDOA-20-125-FA
Price: 118.00 USD
Availability: InStock

SKU: MDOA-20-125-FA

$118.00

Sensor-Type Round Hydraulic Cylinder, Model: Double-Acting Flat Tail Front End Mount Type, Cylinder Bore: ø20mm, Stroke: 125mm, Adjustable Stroke: Standard, Mounting Accessory: FA Foot Bracket(Flange Foot Bracket)

10000 in stock

Click to view the Mindman MDO catalog.

Features
● The MDO* round hydraulic-cylinder series always includes magnetic sensing, with no cushioning.

Specification

Item	Specification
Tube I.D. (mm)	20, 32
Medium	Filtered oil
Material of cylinder barrel	20: Anodised aluminium / 32: Stainless steel
Max. operating pressure	3.5 MPa
Proof pressure	5 MPa
Speed range	0.5~300 mm/sec
Ambient temperature	−10~+60°C (No freezing)
Sensor switch	LN01G

Order Example

MDO Order Example

Mindman MDO Series: Sensor-Type Round Hydraulic Cylinder – MDOA-20-125-FA
