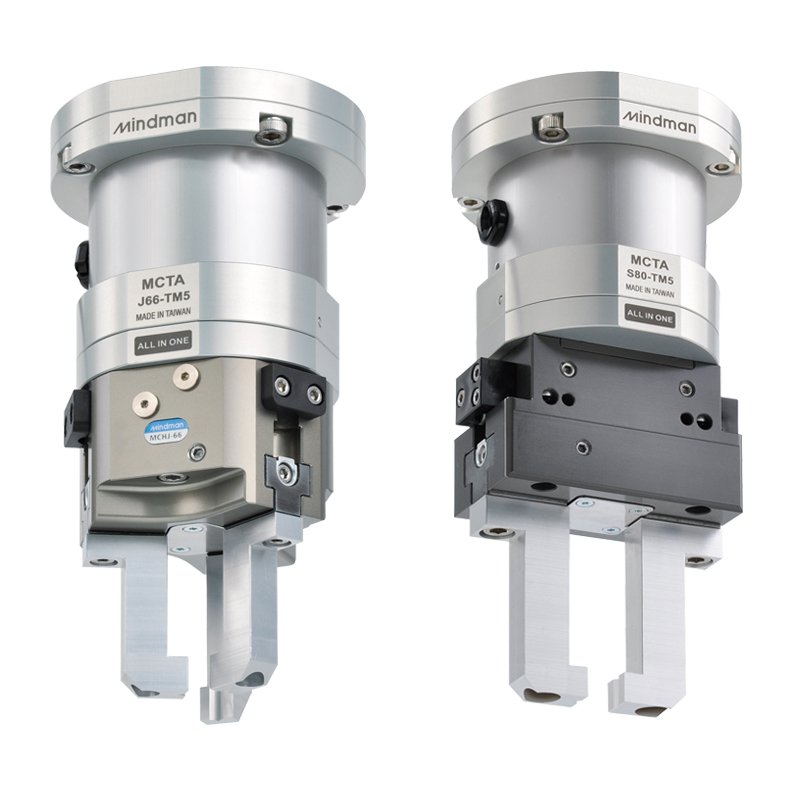

Mindman MCTA Series: Accessory Kit – AK-MCTA-J66-TM
SKU: AK-MCTA-J66-TM
$90.00
Accessory Kit, Applicable Model: MCTA-J66-TM
10000 in stock
Features
● All-in-one: solenoid valve and position sensor integrated into the module.
● Only one air line and one I/O signal line to connect; easy install, plug-and-play.
● Simpler to operate and more reliable than an electric gripper.
● Wiring is integrated in the body with power-loss protection for peace of mind.
● For replacement, users only loosen the rear-cover bolts.
● Magnet fitted across the whole series.
Specification
| Item | Specification |
|---|---|
| Acting type | Double acting |
| Size | 66, 80 |
| Stroke per-jaw (mm) | 6, 8 |
| Effective external gripping force (N) | 188, 285 (※1) |
| Effective internal gripping force (N) | 194, 290 (※1) |
| Close/Open time (s) | 0.03, 0.04 |
| Medium | Air |
| Operating pressure range | 0.2~0.7 MPa, 0.3~0.7 MPa |
| Ambient temperature | +5~+80°C |
| Lubrication | Not required |
| Sensor switch | RDFE: Non-contact |
| Accessories | Accessory kits |
| Weight (kg) | ≈1.3 |
| Recom. work piece weight (kg) | 3.8, 2.6 (※2) |
| Remark | ※1. Under the condition of clamping length 40mm and operation pressure 0.6 MPa. ※2. The weight limit of gripping workpiece depends on the load limit of robot arm and usage parameters. |
