Mindman MCSF Series: Compact Slide Pneumatic Cylinder – MCSF-16-75-X11

Name: Mindman MCSF Series: Compact Slide Pneumatic Cylinder - MCSF-16-75-X11 - Mindman
SKU: MCSF-16-75-X11
Price: 244.00 USD
Availability: InStock

SKU: MCSF-16-75-X11

$244.00

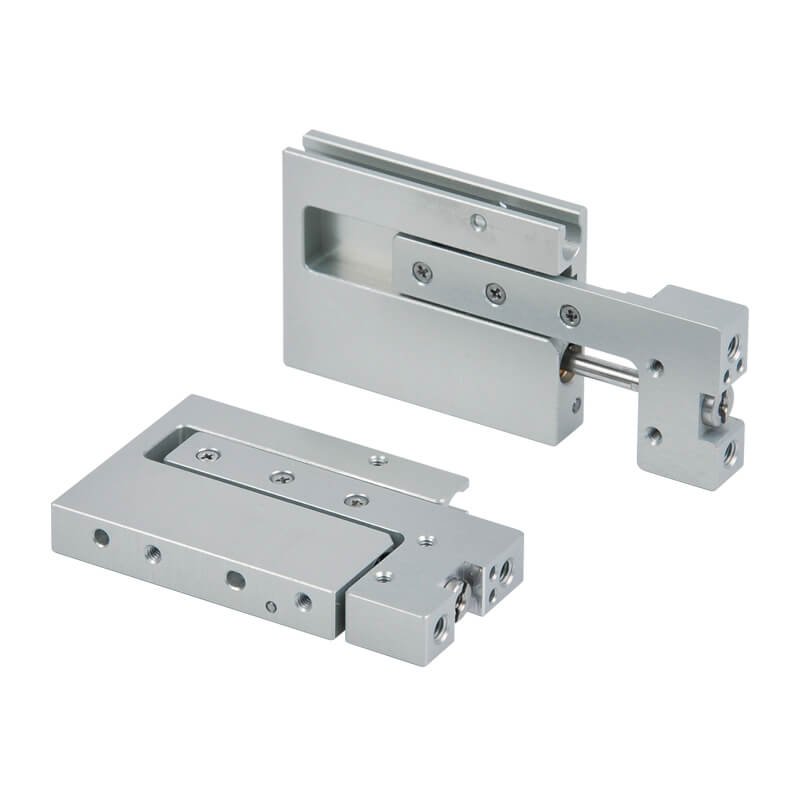

Compact Slide Pneumatic Cylinder, Cylinder Bore: ø16mm, Stroke: 75mm, Stroke Adjustment Range: 15mm

10000 in stock

Click to view the Mindman MCSF catalog.

Features
● The rail and cylinder are arranged in parallel for a thin, compact form.
● Embedded-sensor body design.
● Magnet fitted across the whole series.

Specification

Item	Specification
Acting type	Double acting
Tube I.D. (mm)	5.2, 8, 12, 16, 20
Stroke	10~100mm
Port size	M3×0.5, M5×0.8
Medium	Air
Operating pressure range	0.15~0.7 MPa
Proof pressure	1 MPa
Ambient temperature	−10~+60°C (No freezing)
Available speed range	50~500 mm/sec
Cushion spring stroke	2mm
Cushion spring pressure	0.8 at the time of withdrawal, 2 at the time of acting
Lubricator	Not required
Cushion	Rubber bumper
Stroke length tolerance	+1.0 / 0
Stroke adjuster range	Extend 5mm / Retract 5mm
Sensor switch	φ5.2: RDFEV φ8~20: RCE, RCE1
Weight	22~1351g

Order Example

MCSF Order Example
