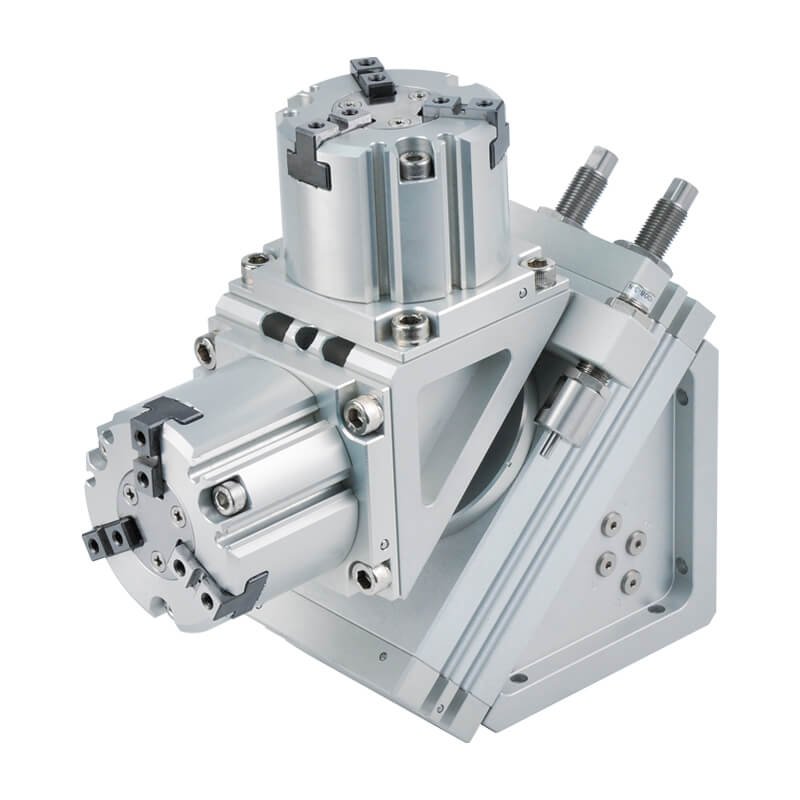

Mindman MCRT Series: 180¡ã Reversing Gripper – MCRT-20
$578.00
180¡ã Reversing Gripper(Rotary Cylinder Body), Cylinder Bore: ø20mm, Gripper Module: No With
10000 in stock
Features
● The rotary cylinder uses a hollow shaft to ease sensor wiring.
● Works with various grippers (2-jaw, 3-jaw), freely selectable.
● Bottom-of-jaw air supply means no piping and no cable tangling.
● Integrates rotate and grip functions into one module for easy automation.
● Splash-proof design suits machining (coolant) environments, reducing leak-related faults.
● Magnet fitted as standard; compatible with embedded sensors.
| Item | Specification |
|---|---|
| Tube I.D. (mm) | 20, 25 |
| Port size | Rc1/8 |
| Rotary angle | 180° |
| Medium | Air |
| Operating pressure range | 0.45~0.7 MPa |
| Ambient temperature | +5~+60°C (No freezing) |
| Lubrication | Not required |
| Sensor switch | RDFE(V) |
| Cushion | Shock absorber (*1) |
| Max. allowable kinetic energy (J) | 1.21 (*2) |
| Remark | *1. The shock absorber is expendable. Replace when damping performance decrease. *2. Excluding gripper module. |
