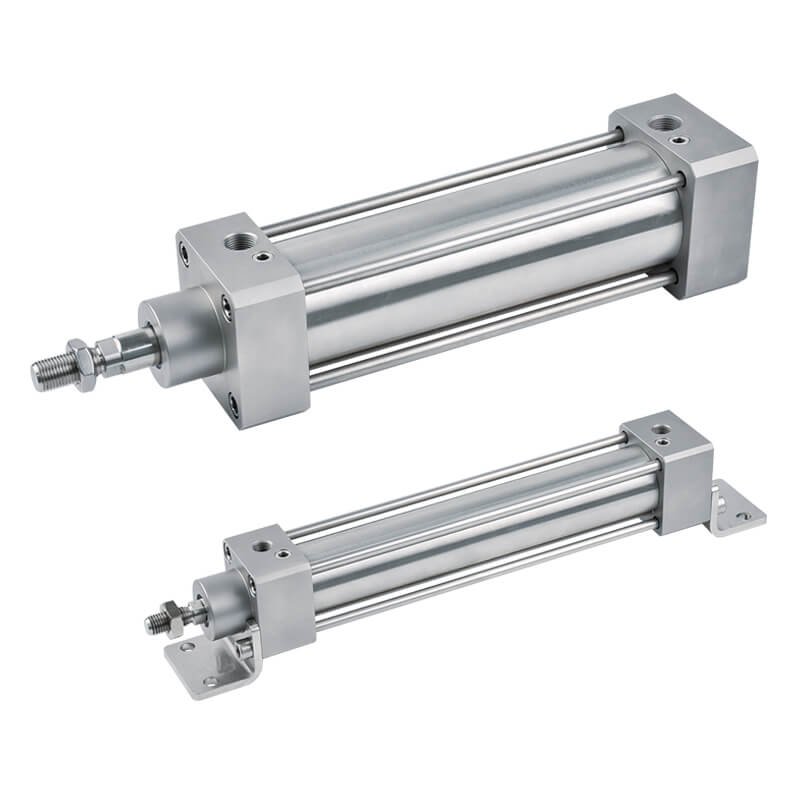

Mindman MCQVS Series: ISO15552 Standard Pneumatic Cylinder(Tie-Rod Type/Stainless Steel) – MCQVS-21-100-125M
$925.00
ISO15552 Standard Pneumatic Cylinder(Tie-Rod Type/Stainless Steel AISI316), Actuation Method: Dual-Axis Double-Acting Male Thread, Number of Axes: Dual-Axis, Cylinder Bore: ø100mm, Stroke: 125mm, Magnet: With Magnet, Port Diameter: G1/2
10000 in stock
Features
● High strength, chemical-resistant
Made of AISI 316 stainless steel.
● ISO 15552 Standard Spec
Made to international standard ISO 15552; most parts are interchangeable.
● Diverse brackets
Various fixed and non-fixed brackets available.
● Magnet fitted across the whole series
| Item | Specification |
|---|---|
| Tube I.D. (mm) | 32, 40, 50, 63, 80, 100 |
| Medium | Air |
| Operating pressure range | 0.1~1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | −10~+80°C (No freezing) |
| Available speed range | 50~1000 mm/sec |
| Sensor switch | RCV |
| Sensor switch band | BV125 |
