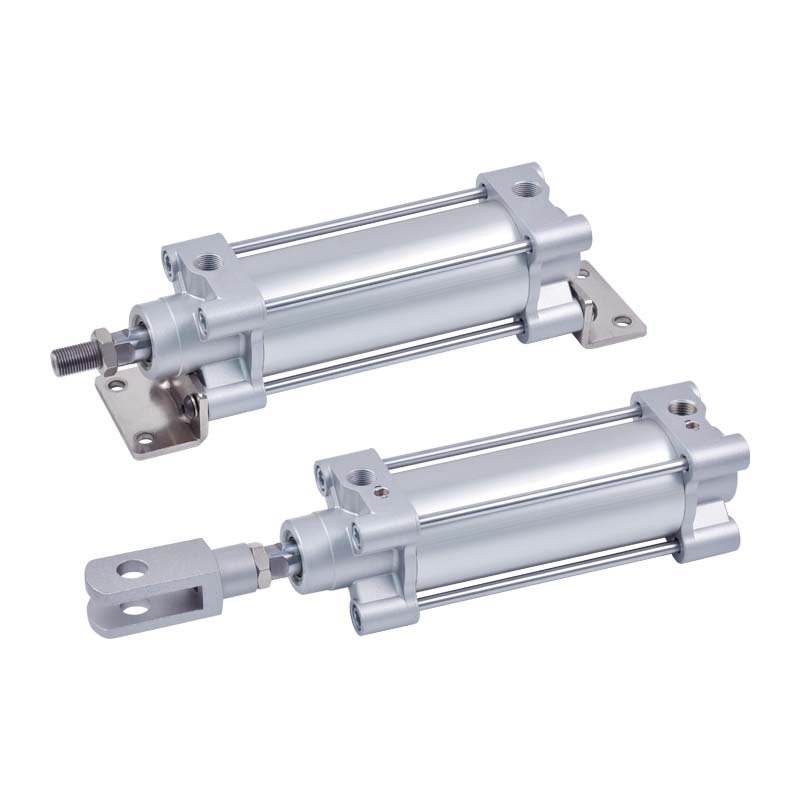

Mindman MCQV3 Series: ISO 15552 Standard Pneumatic Cylinder(Tie-Rod Type) – MCQV3-21-50-50

Name: Mindman MCQV3 Series: ISO 15552 Standard Pneumatic Cylinder(Tie-Rod Type) - MCQV3-21-50-50 - Mindman
SKU: MCQV3-21-50-50
Price: 116.00 USD
Availability: InStock

SKU: MCQV3-21-50-50

$116.00

ISO 15552 Standard Pneumatic Cylinder(Tie-Rod Type), Actuation Method / Rod End Thread: Dual-Axis Double-Acting Male Thread, Cylinder Bore: 50mm, Stroke: 50mm, Magnet: None, Cushion Type: Adjustable-Cushion Type

10000 in stock

Click to view the Mindman MCQV3 catalog.

Features
● Lubrication-free
Uses oil-impregnated alloy and special bearing bushings so the piston rod needs no lubrication.
● High quality, durable
Cylinder tube of aluminum alloy with anodized coating for greater wear,
corrosion resistance.
● Automatic air cushioning
Air cushioning at both ends, no adjustment needed; available as an option.
● Low noise
Added shim cushioning reduces the metallic impact noise and vibration of the cylinder.

Specification

Item	Specification
Tube I.D. (mm)	32, 40, 50, 63, 80, 100
Medium	Air
Operating pressure range	0.05~1 MPa
Proof pressure	1.5 MPa
Ambient temperature	−5~+60°C (No freezing)
Available speed range	50~500 mm/sec
Sensor switch	RDC(V), RQC(V), RDT, RQT, RCA
Sensor switch holder	RC(V): DT7-1, DT7-2 RT: DT-1, DT-2 RCA: HV1, HV2, HV3
Needle valve tightening torque	32, 40, 50, 63: 2~2.5 kgf·cm 80, 100: 4~4.5 kgf·cm

Order Example

MCQV3 Order Example

Mindman MCQV3 Series: ISO 15552 Standard Pneumatic Cylinder(Tie-Rod Type) – MCQV3-21-50-50
