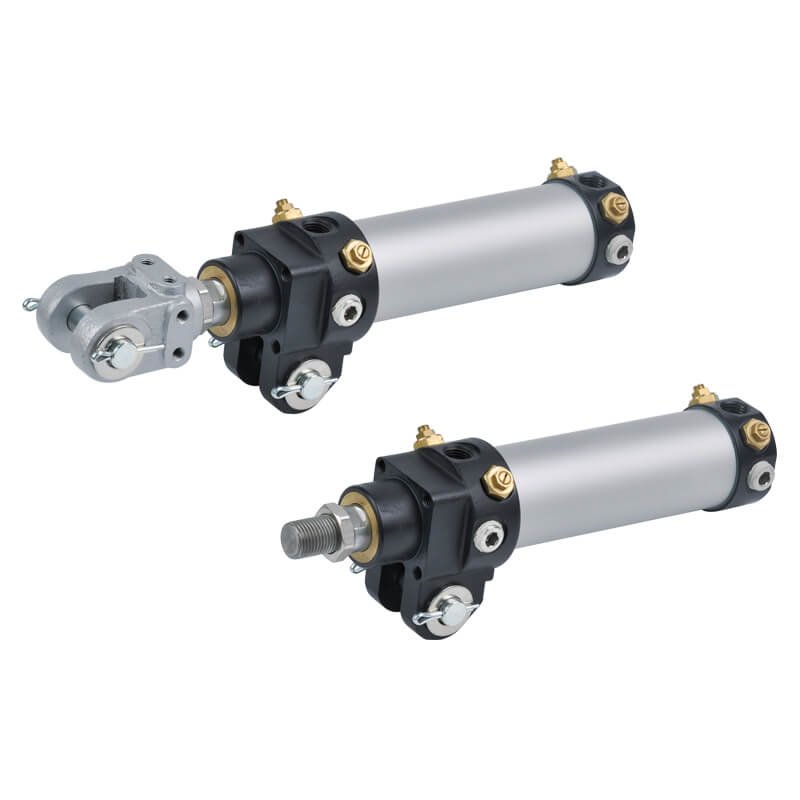

Mindman MCKA Series: Clamp Pneumatic Cylinder – MCKA-40-125 M
$326.00
Clamp Pneumatic Cylinder, Cylinder Bore: 40mm, Stroke: 125mm, Magnet: With Magnet, Cushion Type: Adjustable-Cushion Type
10000 in stock
Features
● The cylinder tube is anodized aluminum alloy for greater wear and corrosion resistance.
● Lubrication-free bearings and wear-resistant seals extend service life.
● Multiple piping positions available.
● The cushioned type effectively reduces impact on the end cap.
| Item | Specification |
|---|---|
| Acting type | MCKA |
| Tube I.D. (mm) | 40 |
| Operating fluid | Compressed Air |
| Operating pressure range | 0.05~1 MPa |
| Proof pressure | 1.5 MPa |
| Temperature range | −5~+60°C (No freezing) |
| Lubrication | Not required |
| Available speed range | 50~500 mm/sec |
| Cushion | With adjustable cushion at both ends |
| Sensor switch | RDC, RQC, RCA |
| Sensor switch band | R*C: BKC-1, RCA: PN-A40 |
