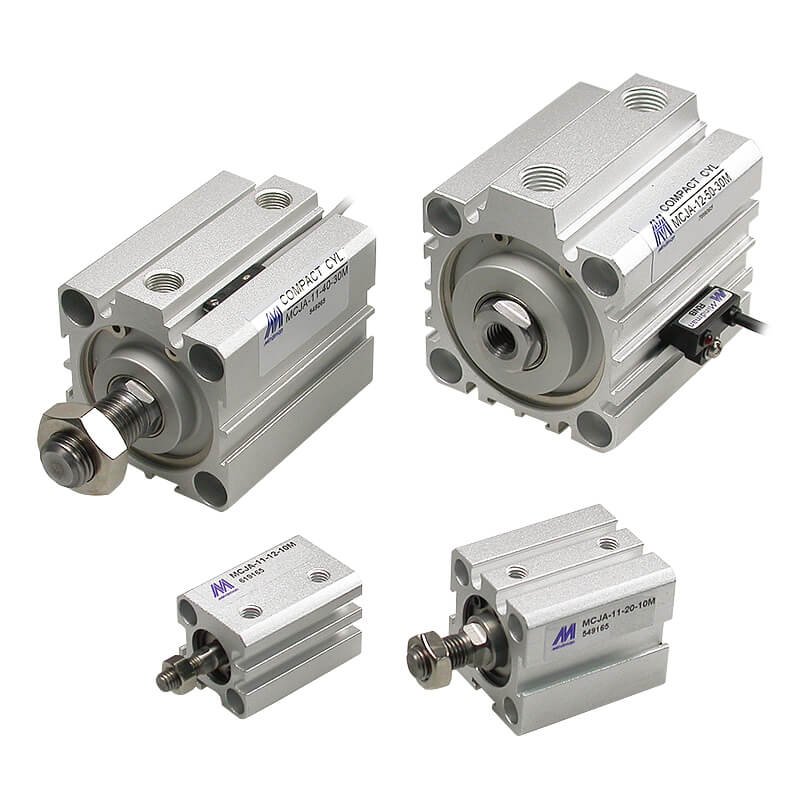

Mindman MCJA Series: Sensor – RCE1-EQD

Name: Mindman MCJA Series: Sensor - RCE1-EQD - Mindman
SKU: RCE1-EQD
Price: 80.00 USD
Availability: InStock

SKU: RCE1-EQD

$80.00

Sensor, Model: RCE1(Reed), Lead Wire Length: M8 3PIN Termin al Type(European Termin al)

10000 in stock

Click to view the Mindman MCJA catalog.

Features
● Designed for efficiency, low cost, and easy installation and use.
● This series mounts entirely via counterbored threaded holes, needing no
any mounting foot, meeting space-saving requirements.
● The body uses carefully selected aluminum alloy with hard anodizing for greater wear
wear and corrosion resistance, precise assembly, and strict 100% inspection,
achieving absolutely reliable quality.
● Mounting grooves are formed around the tube during extrusion, making sensor mounting and position
and position adjustment extremely easy.

Specification

Item	Specification
Acting type	Double acting / Single acting
Tube I.D. (mm)	12, 16, 20, 25, 32, 40, 50, 63, 80, 100
Port size	M5×0.8, Rc1/8, Rc1/4, Rc3/8
Medium	Air
Operating pressure range	Double acting: 0.02~1 MPa, Single acting: 0.1~1 MPa
Proof pressure	1.5 MPa
Ambient temperature	-5~+60°C (No freezing)
Available speed range	50~500 mm/sec
Sensor switch	RCB, RCE, RCE1, RDEP

Order Example

MCJA

MCJA Order Example

MCJA-3

MCJA-3 Order Example

MCJA-4

MCJA-4 Order Example

Mindman MCJA Series: Sensor – RCE1-EQD
