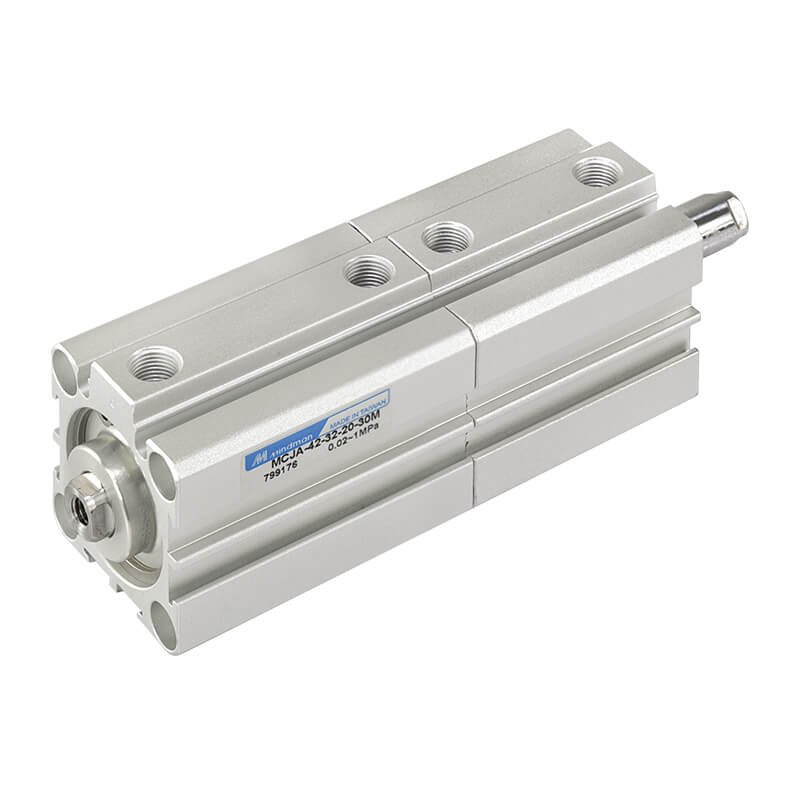

Mindman MCJA-4 Series: Compact (Jig) Pneumatic Cylinder – MCJA-41-12-10X5

Name: Mindman MCJA-4 Series: Compact (Jig) Pneumatic Cylinder - MCJA-41-12-10X5 - Mindman
SKU: MCJA-41-12-10X5
Price: 60.00 USD
Availability: InStock

SKU: MCJA-41-12-10X5

$60.00

Compact (Jig) Pneumatic Cylinder, Dual Head Type, Actuation Method / Rod End Thread: Double-Acting Male Thread, Actuation Method: Double-Acting, Cylinder Bore: ø12mm, Port Diameter Size: M5X0.8, Stroke 1 (First Stage): 10mm, Stroke 2 (Second Stage): 5mm, Magnet: No With Magnet, Port Thread: M5X0.8

10000 in stock

Click to view the Mindman MCJA catalog.

Features
● Designed for efficiency, low cost, and easy installation and use.
● This series mounts entirely via counterbored threaded holes, needing no
any mounting foot, meeting space-saving requirements.
● The body uses carefully selected aluminum alloy with hard anodizing for greater wear
wear and corrosion resistance, precise assembly, and strict 100% inspection,
achieving absolutely reliable quality.
● Mounting grooves are formed around the tube during extrusion, making sensor mounting and position
and position adjustment extremely easy.

Specification

Item	Specification
Acting type	Double acting / Single acting
Tube I.D. (mm)	12, 16, 20, 25, 32, 40, 50, 63, 80, 100
Port size	M5×0.8, Rc1/8, Rc1/4, Rc3/8
Medium	Air
Operating pressure range	Double acting: 0.02~1 MPa, Single acting: 0.1~1 MPa
Proof pressure	1.5 MPa
Ambient temperature	-5~+60°C (No freezing)
Available speed range	50~500 mm/sec
Sensor switch	RCB, RCE, RCE1, RDEP

Order Example

MCJA

MCJA Order Example

MCJA-3

MCJA-3 Order Example

MCJA-4

MCJA-4 Order Example

Mindman MCJA-4 Series: Compact (Jig) Pneumatic Cylinder – MCJA-41-12-10X5
