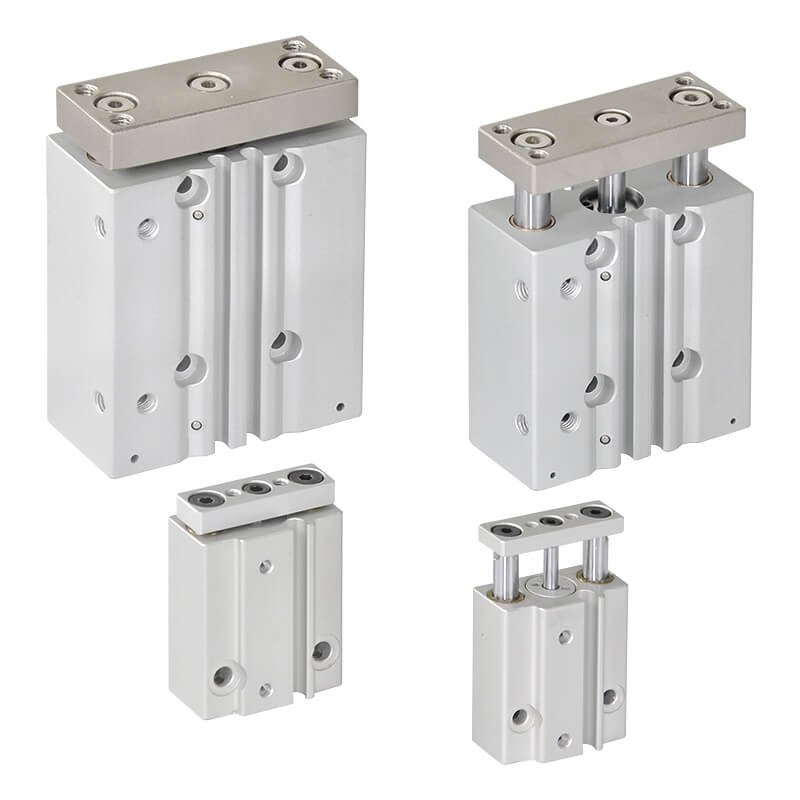

Mindman MCGS Series: Mini Twin-Guide-Rod Pneumatic Cylinder – MCGS-03-32-100
$329.00
Mini Twin-Guide-Rod Pneumatic Cylinder, Application / Bearing Type: Stopper Type/Sliding Bearing, Cylinder Bore: ø32mm, Stroke: 100mm, Port Thread: Rc Thread, Actuation Method: Double-Acting, Operating Pressure Range: 0.1~1 MPa
10000 in stock
Features
● For maximum practicality, this space-saving, easy-to-install product was designed.
● Piping can be mounted from two sides.
● Three ways to mount the body.
● Four grooves for mounting embedded sensors.
● Magnet fitted across the whole series.
| Item | Specification |
|---|---|
| Acting type | Double acting |
| Tube I.D. (mm) | 6, 10, 12, 16, 20, 25, 32, 40, 50, 63 |
| Port size | M5×0.8, Rc1/8, Rc1/4 |
| Medium | Air |
| Operating pressure range | 0.1~1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | -5°C~+60°C (No freezing) |
| Cushion | With rubber cushion pad |
| Available speed range | 50~500 mm/sec |
| Lubrication | Not required |
| Sensor switch | RDCV, RQCV, RDGV, RCE, RCE1, RDEP |
