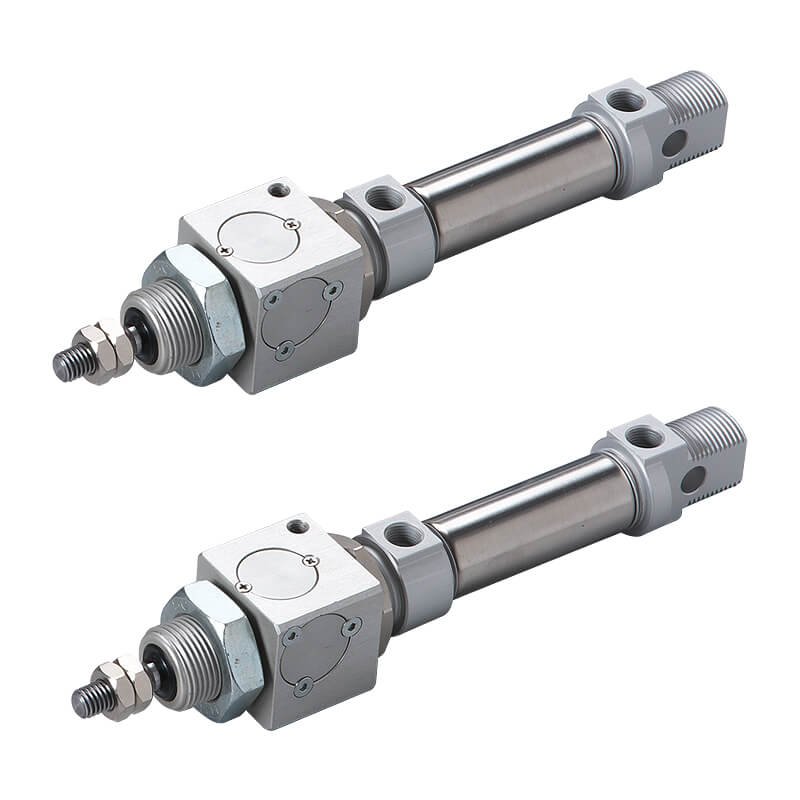

Mindman MCB*Series: Locking Pneumatic Cylinder – MCBMI-11-20-100

Name: Mindman MCB*Series: Locking Pneumatic Cylinder - MCBMI-11-20-100 - Mindman
SKU: MCBMI-11-20-100
Price: 156.00 USD
Availability: InStock

SKU: MCBMI-11-20-100

$156.00

Locking Pneumatic Cylinder, Type: MCBMI(With Magnet), Actuation Method: Double-Acting Male Thread, Cylinder Bore: ø20mm, Standard Stroke: 100mm, Cushion Type: Shim-Cushion Type(Non-Adjustable), Locking Device Brake Direction: Two-Way, Operating Pressure Range: 0.3~0.6 MPa

10000 in stock

Click to view the Mindman MCBMI catalog.

Features
● Diverse specifications
Nine bore sizes ø20~125, each lockable at any position within the stroke range.
● Braking function
Braking function in both directions.
● Lubrication-free
Uses oil-impregnated alloy and special bearing bushings so the piston rod needs no lubrication.
● High quality, durable
Cylinder tube of aluminum alloy and stainless steel for greater wear and corrosion resistance.
● ISO 15552 & ISO 6432 Standard Spec
Made to international standards ISO 15552 and ISO 6432; most parts
are interchangeable.
● Diverse brackets
Various fixed and non-fixed brackets available.

Specification

Item	Specification
Cylinder bore (mm)	20, 25
Medium	Air
Operating pressure range	0.3~0.6 MPa
Proof pressure	1.5 MPa
Ambient temperature	-5~+60°C (No freezing)
Min. locking operation pressure	0.3 MPa
Operating speed range	50~750 mm/sec
Locking brake direction	Bidirectional
Locking holding force	490 N
Sensor (with band)	RDC, RQC (BKC-1) / RDT, RQT (BKT-1) / RCM (BM20, BM25)

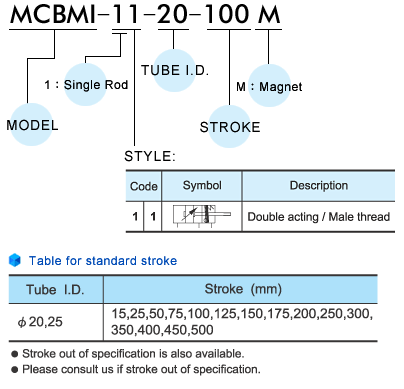

Order Example

MCBMI Order Example

Mindman MCB*Series: Locking Pneumatic Cylinder – MCBMI-11-20-100
