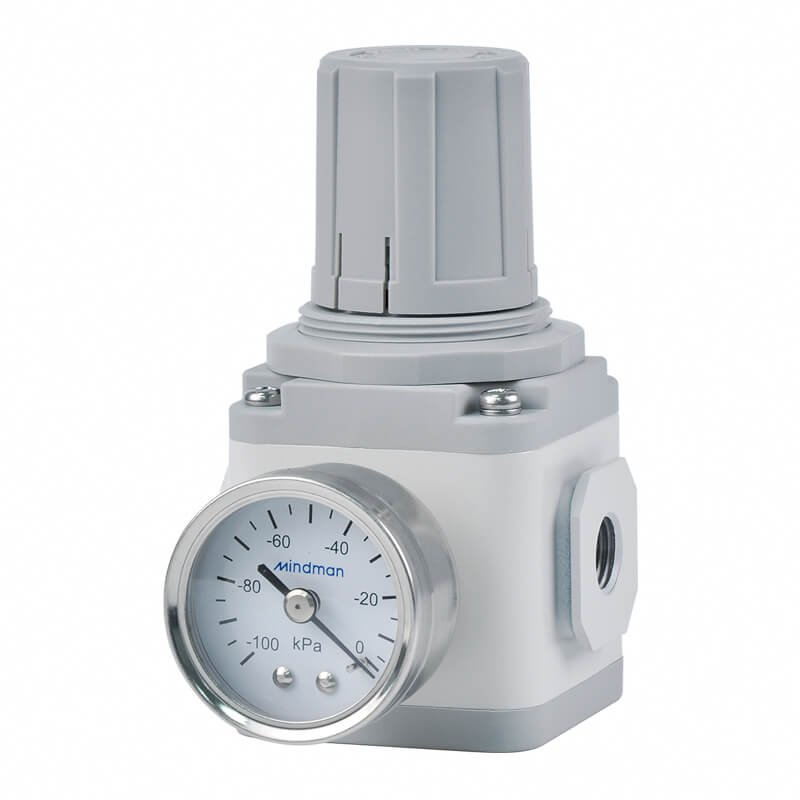

Mindman MARV302 Series: Air Combination Unit(Vacuum Regulator) – MARV302-10A-E6-B

Name: Mindman MARV302 Series: Air Combination Unit(Vacuum Regulator) - MARV302-10A-E6-B - Mindman
SKU: MARV302-10A-E6-B
Price: 80.50 USD
Availability: InStock

SKU: MARV302-10A-E6-B

$80.50

Air Combination Unit(Vacuum Regulator), Port Diameter Code: 10A, Port Diameter Size: 3/8, Pressure Gauge / Sensor: Digital Pressure Sensor(MP48E-011), Bracket: L Type Bracket, Port Thread: Rc Thread

10000 in stock

Click to view the Mindman MARV302 catalog.

Features
● Installed downstream of the vacuum pump to adjust vacuum pressure for machine needs.
● Can be modularly combined with the MAFV302 vacuum filter.
● High flow up to 310 l/min (ANR).
● Precise, stable vacuum-pressure setting with knob resolution below 0.13 kPa.

Specification

Item	Specification
Bore No.	8A, 10A, 15A
Port size	1/4, 3/8, 1/2
Medium	Air
Proof pressure ※1	100 kPa
Setting pressure range ※2	−100 ~ −1.3 kPa
Atmospheric intake consumption ※3	0.6 l/min(ANR) or less
Knob resolution	0.13 kPa以下
Ambient temperature	−5~+60°C (No freezing)
Max. flow rate ※4	275 l/min(ANR), 310 l/min(ANR)
Option	Pressure gauge (PGV-40S), L type bracket
Weight	470 g
Remark	※1. For vacuum regulator with pressure gauge, the gauge will be damaged if positive pressure is supplied. ※2. Use caution it varies depending on the pressure in vacuum pump side. ※3. Take air from atmosphere all the time. ※4. It is the flow rate when the secondary side is completely close and primary pressure is at 101kPa, and then adjusting secondary pressure at −80kPa, the secondary side is fully opened.

Order Example

MARV302 Order Example

Mindman MARV302 Series: Air Combination Unit(Vacuum Regulator) – MARV302-10A-E6-B
