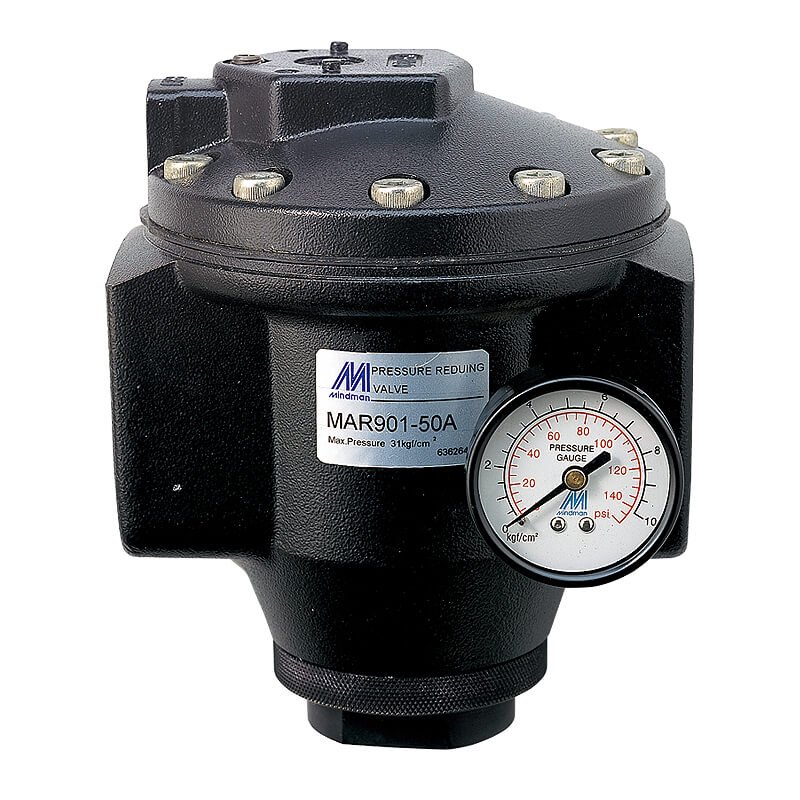

Mindman MAR901 Series: Air Combination Unit(Regulator/Pilot-Operated) – MAR901-50A-NPT

Name: Mindman MAR901 Series: Air Combination Unit(Regulator/Pilot-Operated) - MAR901-50A-NPT - Mindman
SKU: MAR901-50A-NPT
Price: 297.60 USD
Availability: InStock

SKU: MAR901-50A-NPT

$297.60

Air Combination Unit(Regulator/Pilot-Operated), Port Diameter Code: 50A, Port Diameter Size: 2, Flow Direction: Left¡úRight, Port Thread: NPT Thread

10000 in stock

Click to view the Mindman MAR901 catalog.

Features
● Port size: 2, max operating pressure: 3.1 MPa
● Can be installed anywhere in the compressed-air system.
● Precise pressure adjustment over a wide flow range.

Specification

Item	Specification
Bore No.	50A
Port size	2
Medium	Air
Max. operating pressure	3.1 MPa
Min. pilot pressure (※2)	0.15 MPa
Regulated pressure range	Up to 1.75 MPa (with the help of a pilot regulator)
Ambient temperature	0~+80°C (No freezing)
Attachment	Pressure gauge (PG-50)
Standard nominal flow rate (※1)	59000 l/min
Weight	3055g
Remark	※1. Primary pressure 1 MPa. Secondary pressure 0.6 MPa and △P = 0.1 MPa. ※2. Minimum secondary pressure of pilot regulator.

Order Example

MAR901 Order Example
