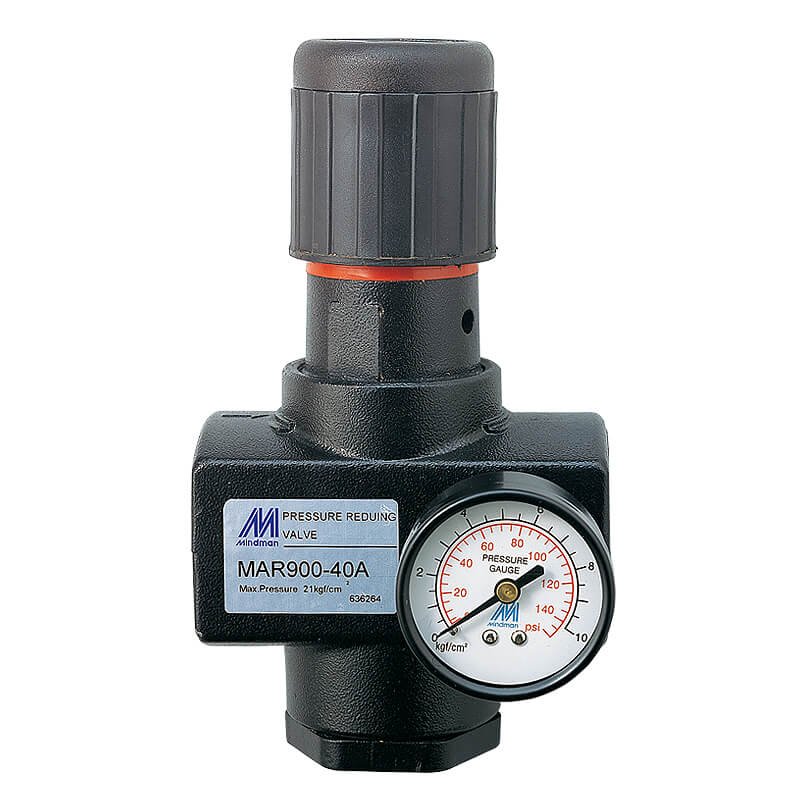

Mindman MAR900 Series: Air Combination Unit(Regulator) – MAR900-40A
$223.20
Air Combination Unit(Regulator), Port Diameter Code: 40A, Port Diameter Size: 1 1/2, Flow Direction: Left¡úRight, Port Thread: Rc Thread
10000 in stock
Features
● Port size: 1 1/2, max operating pressure: 2.1 MPa
● Good regulation: maintains the required pressure even with fluctuations.
| Item | Specification |
|---|---|
| Bore No. | 40A |
| Port size | 1 1/2 |
| Medium | Air |
| Max. operating pressure | 2.1 MPa |
| Regulated pressure range | 0.09~0.86 MPa |
| Ambient temperature | 0~+80°C (No freezing) |
| Attachment | Pressure gauge (PG-50) |
| Standard nominal flow rate (※) | 11000 l/min |
| Weight | 1208g |
| Remark | ※Flow is at 1 MPa supply pressure and 0.1 MPa purssure drop of 0.6 MPa of secondary pressure. |
