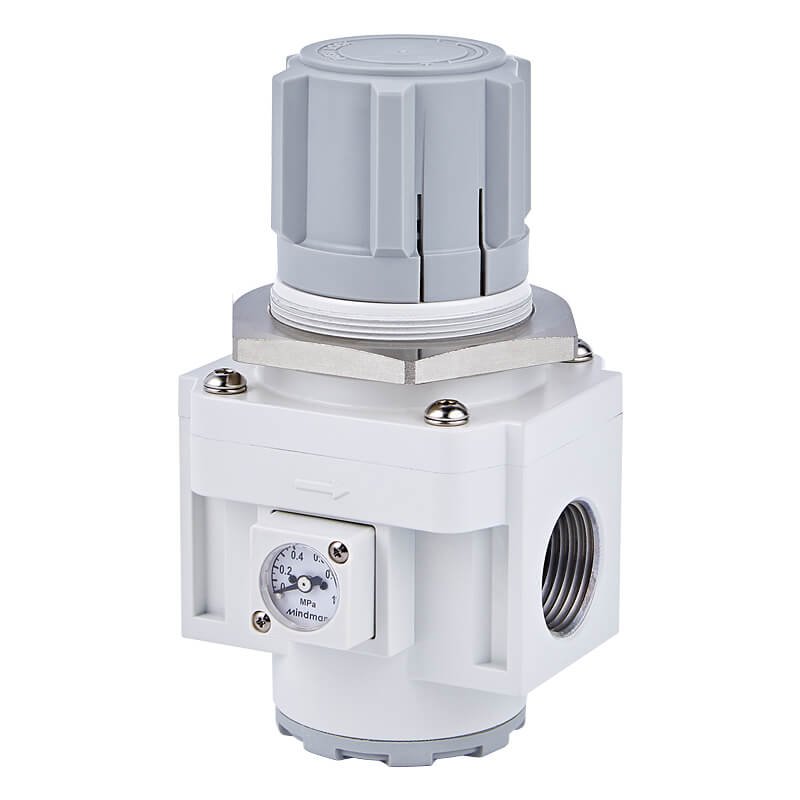

Mindman MAR501 Series: Air Combination Unit(Regulator) – MAR501-20A-E1-NPT

Name: Mindman MAR501 Series: Air Combination Unit(Regulator) - MAR501-20A-E1-NPT - Mindman
SKU: MAR501-20A-E1-NPT
Price: 271.80 USD
Availability: InStock

SKU: MAR501-20A-E1-NPT

$271.80

Air Combination Unit(Regulator), Port Diameter: 20A(3/4″), Pressure Gauge: PG-20(Standard With Metal Pressure Gauge), Nut: Without, Flow Direction: Left¡úRight, Digital Pressure Sensor: MP41P-022, Port Thread: NPT Thread

10000 in stock

Click to view the Mindman MAR501 catalog.

Features
● Port Diameter Size: 3/4, 1,
●Max operating pressure: 1.5 MPa, withstand pressure: 2 MPa.

Specification

Item	Specification
Bore No.	20A, 25A
Port size	3/4, 1
Medium	Air
Max. operating pressure	1.5 MPa
Proof pressure	2 MPa
Regulated pressure range	0.05~0.85 MPa
Ambient temperature	−5~+60°C (No freezing)
Standard attachment	Pressure gauge (PG-20), L type bracket
Weight	1460 g

Order Example

MAR501 Order Example

Mindman MAR501 Series: Air Combination Unit(Regulator) – MAR501-20A-E1-NPT
