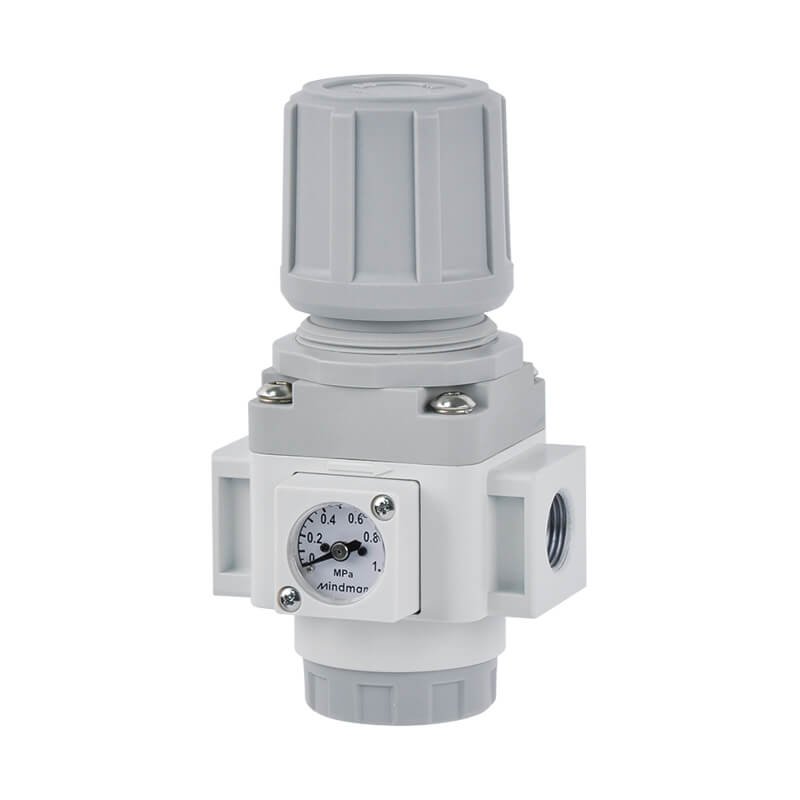

Mindman MAR403 Series: Air Combination Unit(Regulator) – MAR403-10A-A

Name: Mindman MAR403 Series: Air Combination Unit(Regulator) - MAR403-10A-A - Mindman
SKU: MAR403-10A-A
Price: 71.30 USD
Availability: InStock

SKU: MAR403-10A-A

$71.30

Air Combination Unit(Regulator), Type: Standard, Port Diameter: 3/8, Relief Type: Relief Type, Pressure Gauge: Pressure Gauge Manifold(A-MAR302), Pressure Sensor: Without, Flow Direction: Left¡úRight, Digital Pressure Sensor: Without, Bracket: Without, Port Thread: Rc Thread

10000 in stock

Click to view the Mindman MAR403 catalog.

Features
● Port Diameter Size: 1/4, 3/8, 1/2,
●Max operating pressure: 1 MPa, withstand pressure: 1.5 MPa.

Specification

Item	Specification
Bore No.	8A, 10A, 15A
Port size	1/4, 3/8, 1/2
Medium	Air
Max. operating pressure	1 MPa
Proof pressure	1.5 MPa
Regulated pressure range	0.1~0.85 MPa
Ambient temperature	−5~+60°C (no freezing)
Standard attachment	Pressure gauge (PG-20)
Optional attachment	Screw fixed bracket
Weight	450 g

Order Example

MAR403 Order Example

Mindman MAR403 Series: Air Combination Unit(Regulator) – MAR403-10A-A
