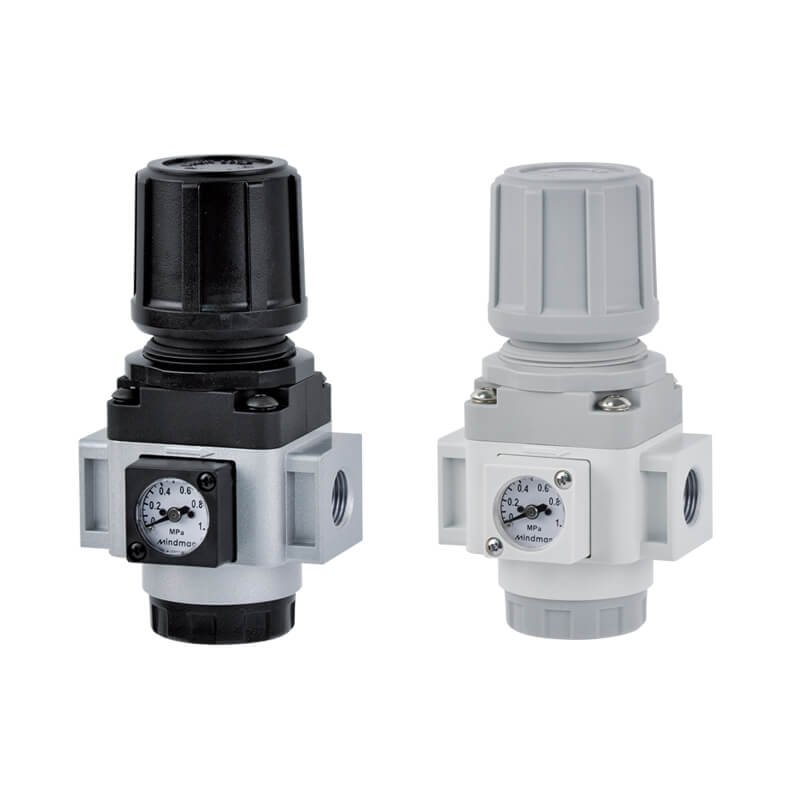

Mindman MAR401 Series: Air Combination Unit(Regulator) – MAR401-10A

Name: Mindman MAR401 Series: Air Combination Unit(Regulator) - MAR401-10A - Mindman
SKU: MAR401-10A
Price: 80.30 USD
Availability: InStock

SKU: MAR401-10A

$80.30

Air Combination Unit(Regulator), Model Type: Standard, Port Diameter: 3/8, Appearance Color: Black&Silver, Relief Type: Relief Type, Pressure Type: Standard, Pressure Gauge: Pressure Gauge PG-20, Pressure Sensor: Without, Flow Direction: Left¡úRight, Digital Pressure Sensor: Without, Bracket: Without, Port Thread: Rc Thread

10000 in stock

Click to view the Mindman MAR401 catalog.

Features
● Port Diameter Size: 1/4, 3/8, 1/2,
●Max operating pressure: 1.5 MPa, withstand pressure: 2 MPa.

Specification

Item	Specification
Bore No.	8A, 10A, 15A
Port size	1/4, 3/8, 1/2
Medium	Air
Max. operating pressure	1.5 MPa
Proof pressure	2 MPa
Regulated pressure range	Standard type: 0.1~0.85 MPa, High pressure type: 0.1~1.5 MPa
Ambient temperature	−5~+60°C (No freezing)
Standard attachment	Pressure gauge (PG-20)
Optional attachment	Screw fixed bracket
Weight	450 g

Order Example

MAR401 Order Example

Mindman MAR401 Series: Air Combination Unit(Regulator) – MAR401-10A
