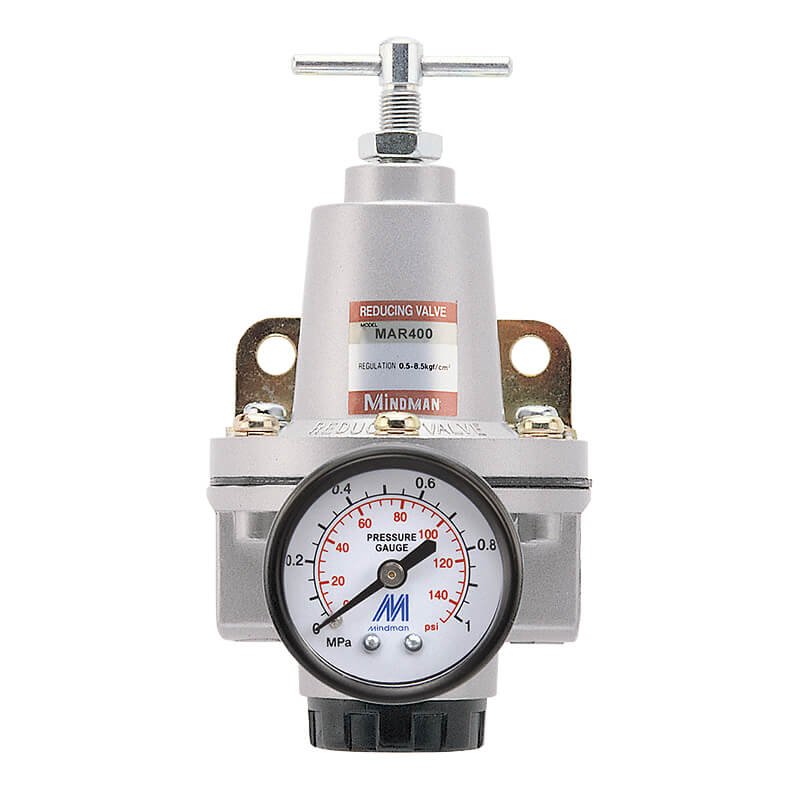

Mindman MAR400 Series: Air Combination Unit(Regulator) – MAR400-10A-G

Name: Mindman MAR400 Series: Air Combination Unit(Regulator) - MAR400-10A-G - Mindman
SKU: MAR400-10A-G
Price: 71.30 USD
Availability: InStock

SKU: MAR400-10A-G

$71.30

Air Combination Unit(Regulator), Port Diameter Code: 10A, Port Diameter Size: 3/8, Flow Direction: Left¡úRight, Port Thread: G Thread

10000 in stock

Click to view the Mindman MAR400 catalog.

Features
● Port Diameter Size: 1/4, 3/8, 1/2,
●Max operating pressure: 1 MPa, withstand pressure: 1.5 MPa.

Specification

Item	Specification
Bore No.	8A, 10A, 15A
Port size	1/4, 3/8, 1/2
Medium	Air
Max. operating pressure	1 MPa
Proof pressure	1.5 MPa
Regulated pressure range	0.05~0.85 MPa
Ambient temperature	−5~+60°C (No freezing)
Standard attachment	Pressure gauge (PG-50), L type bracket
Weight	1000 g

Order Example

MAR400 Order Example

Mindman MAR400 Series: Air Combination Unit(Regulator) – MAR400-10A-G
