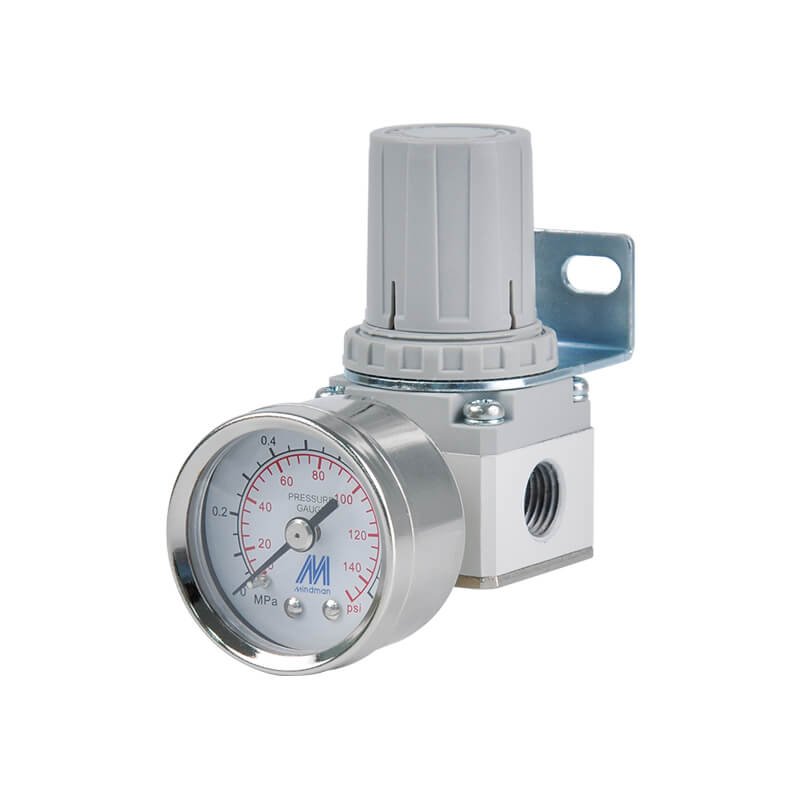

Mindman MAR200 Series: Air Combination Unit(Regulator) – MAR200-6A

Name: Mindman MAR200 Series: Air Combination Unit(Regulator) - MAR200-6A - Mindman
SKU: MAR200-6A
Price: 49.60 USD
Availability: InStock

SKU: MAR200-6A

$49.60

Air Combination Unit(Regulator), Type: Standard, Port Diameter: 1/8, Relief Type: Relief Type, Set Pressure Range: 0.05~0.85MPa, Pressure Gauge: Without, Flow Direction: Left¡úRight, Bracket: L Type, Port Thread: Rc Thread

10000 in stock

Click to view the Mindman MAR200 catalog.

Features
● Port Diameter Size: 1/8, 1/4,
●Max operating pressure: 1 MPa, withstand pressure: 1.5 MPa.

Specification

Item	Specification
Bore No.	6A, 8A
Port size	1/8, 1/4
Medium	Air
Max. operating pressure	1 MPa
Proof pressure	1.5 MPa
Regulated pressure range	Standard type: 0.05~0.85 MPa
Ambient temperature	−5~+60°C (No freezing)
Standard attachment	L type bracket
Optional attachment	Pressure gauge (PG-40), Z type bracket
Weight	190 g

Order Example

MAR200 Order Example

Mindman MAR200 Series: Air Combination Unit(Regulator) – MAR200-6A
