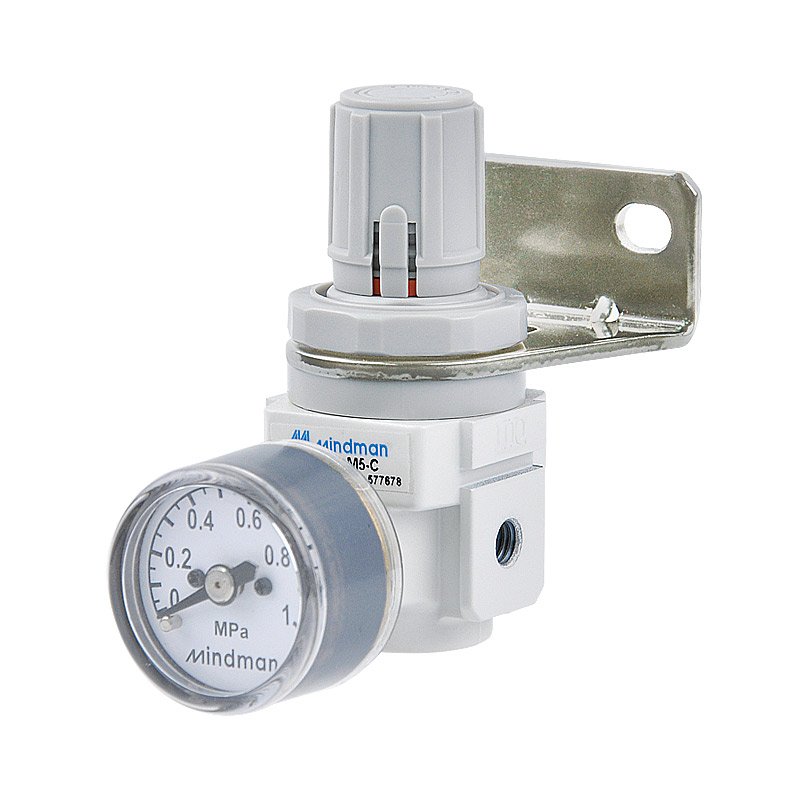

Mindman MAR100 Series: Air Combination Unit(Regulator) – MAR100-M5

Name: Mindman MAR100 Series: Air Combination Unit(Regulator) - MAR100-M5 - Mindman
SKU: MAR100-M5
Price: 34.10 USD
Availability: InStock

SKU: MAR100-M5

$34.10

Air Combination Unit(Regulator), Port Diameter: M5¡Á0.8, Bracket: Without Bracket, Pressure Gauge: Without Pressure Gauge, Flow Direction: Left¡úRight

10000 in stock

Click to view the Mindman MAR100 catalog.

Features
● Port Diameter Size: M5¡Á0.8,
● Max operating pressure: 1 MPa, withstand pressure: 1.5 MPa.

Specification

Item	Specification
Port size	M5 × 0.8
Medium	Air
Max. operating pressure	1 MPa
Proof pressure	1.5 MPa
Regulated pressure range	0.05~0.7 MPa
Repeatability	±10% F.S.
Ambient temperature	−5~+60°C (No freezing)
Flow rate (※)	90 l/min
Optional attachment	Pressure gauge (PG-25), L type bracket
Weight	100 g
Remark	※ Measured at primary pressure 0.7 MPa, secondary pressure 0.6 MPa and pressure drop 0.1 MPa.

Order Example

MAR100 Order Example

Mindman MAR100 Series: Air Combination Unit(Regulator) – MAR100-M5
