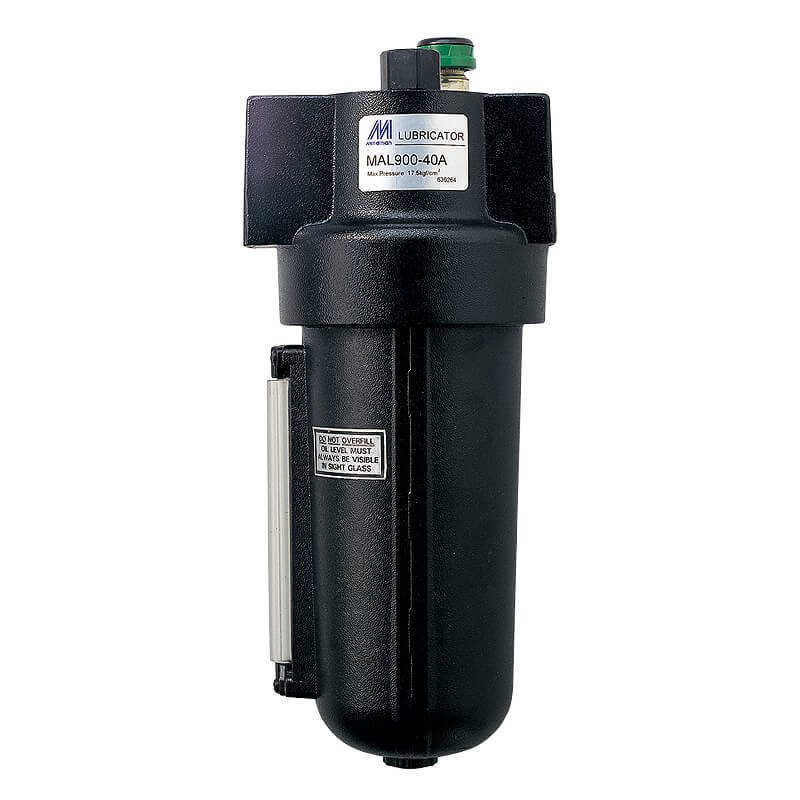

Mindman MAL900 Series: Air Combination Unit(Lubricator) – MAL900-40A
SKU: MAL900-40A
$201.60
Air Combination Unit(Lubricator), Port Diameter: 1 1/2″, Port Thread: Rc Thread
10000 in stock
Features
●For lubricating air tools, cylinder directional valves, air motors, and other pneumatic
devices.
●Port size: 1 1/2, max operating pressure: 1.75 MPa, oil-cup capacity: 1000 c.c.
●For lubricating air tools, cylinders, valves, air motors, and other pneumatic devices.
Specification
| Item | Specification |
|---|---|
| Bore No. | 40A |
| Port size | 1 1/2 |
| Medium | Air |
| Max. operating pressure | 1.75 MPa |
| Ambient temperature | 0~+80°C (No freezing) |
| Lubricating oil capacity | 1000 cm³ |
| Min. flow for oil drip | 204 l/min |
| Recommended lubricating oil | Turbine oil ISO-VG32 |
| Standard nominal flow rate (※) | 12000 l/min |
| Weight | 1766 g |
| Remark | ※ Flow is at pressure P=0.6 MPa with purssure drop △P=0.1 MPa. |
