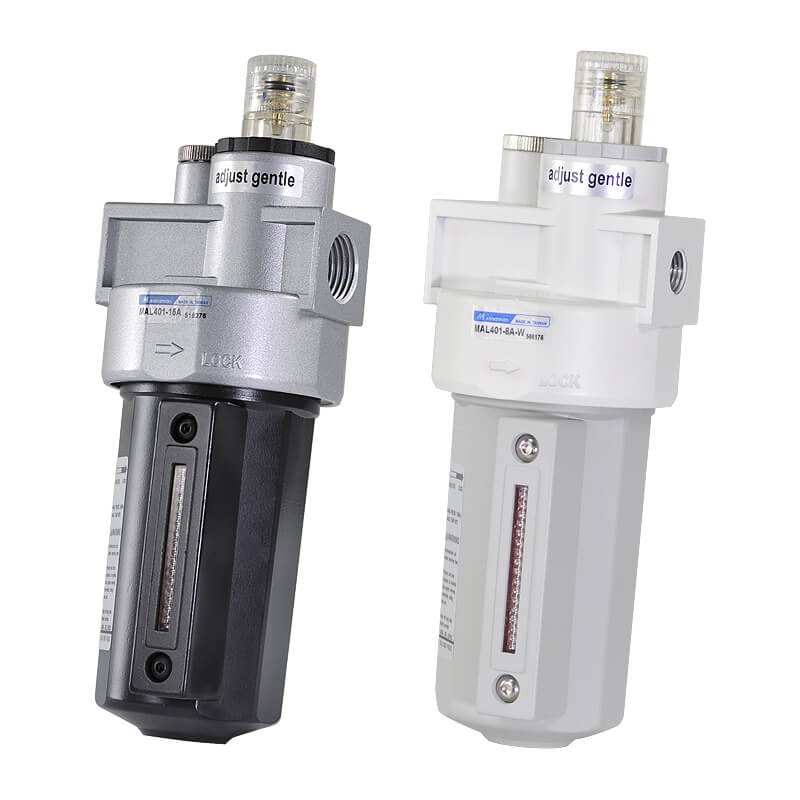

Mindman MAL401 Series: Air Combination Unit(Lubricator) – MAL401-10A–B

Name: Mindman MAL401 Series: Air Combination Unit(Lubricator) - MAL401-10A-B - Mindman
SKU: MAL401-10A--B
Price: 64.40 USD
Availability: InStock

SKU: MAL401-10A--B

$64.40

Air Combination Unit(Lubricator), Port Diameter Code: 10A, Port Diameter Size: 3/8, Appearance Color: Black&Silver, Level Switch: Without Level Switch, Flow Direction: Left¡úRight, Bracket: Without Bracket, Port Thread: Rc Thread

10000 in stock

Click to view the Mindman MAL401 catalog.

Features
● Port Diameter Code 8A, 10A, 15A
● Port Diameter Size 1/4, 3/8, 1/2
● Operating Fluid Air
● Max Operating Pressure 1.5 MPa
● Withstand Pressure 2 MPa
● Ambient Temperature £5~£«60℃ (Non-Freezing)
●Oil-cup capacity 200 cm3
●Min air flow for oil dripping 30 l/min~80 l/min
●Recommended lubricant: turbine oil ISO-VG32

Specification

Item	Specification
Bore No.	8A, 10A, 15A
Port size	1/4, 3/8, 1/2
Medium	Air
Max. operating pressure	1.5 MPa
Proof pressure	2 MPa
Ambient temperature	−5~+60°C (No freezing)
Lubricating oil capacity	200 cm³
Min. flow for oil drip	8A: 30 l/min, 10A: 65 l/min, 15A: 80 l/min
Recommended lubricating oil	Turbine oil ISO-VG32
Max. flow rate (※) l/min	8A: 1200 l/min, 10A: 2000 l/min, 15A: 2100 l/min
Optional attachment	C type bracket
Weight	545 g
Remark	※ Flow is at pressure P=0.7 MPa with purssure drop △P=0.03 MPa. (ANR)

Order Example

MAL401 Order Example

Mindman MAL401 Series: Air Combination Unit(Lubricator) – MAL401-10A–B
