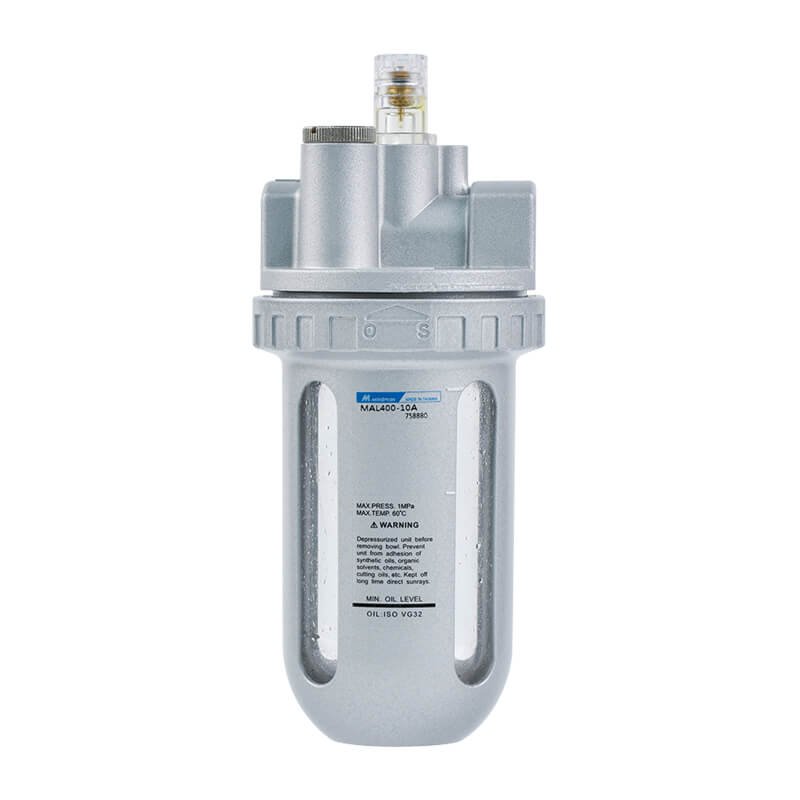

Mindman MAL400 Series: Air Combination Unit(Lubricator) – MAL400-10A-ND-B

Name: Mindman MAL400 Series: Air Combination Unit(Lubricator) - MAL400-10A-ND-B - Mindman
SKU: MAL400-10A-ND-B
Price: 64.40 USD
Availability: InStock

SKU: MAL400-10A-ND-B

$64.40

Air Combination Unit(Lubricator), Port Diameter Code: 10A, Port Diameter Size: 3/8, Bowl Material: PC Bowl, Flow Direction: Left¡úRight, Bracket: Without Bracket, Port Thread: Rc Thread

10000 in stock

Click to view the Mindman MAL400 catalog.

Features
● Port Diameter Size: 1/4, 3/8, 1/2,
●Max operating pressure: 1 MPa, withstand pressure: 1.5 MPa.

Specification

Item	Specification
Bore No.	8A, 10A, 15A
Port size	1/4, 3/8, 1/2
Medium	Air
Max. operating pressure	1 MPa
Proof pressure	1.5 MPa
Ambient temperature	−5~+60°C (No freezing)
Lubricating oil capacity	200 cm³
Min. flow for oil drip	8A: 100 l/min, 10A: 200 l/min, 15A: 400 l/min
Recommended lubricating oil	Turbine oil ISO-VG32
Max. flow rate (※) l/min	8A: 400 l/min, 10A: 1300 l/min, 15A: 2500 l/min
Optional attachment	L type bracket
Weight	600 g
Remark	※ Flow is at pressure P=0.7 MPa with purssure drop △P=0.03 MPa. (ANR)

Order Example

MAL400 Order Example

Mindman MAL400 Series: Air Combination Unit(Lubricator) – MAL400-10A-ND-B
