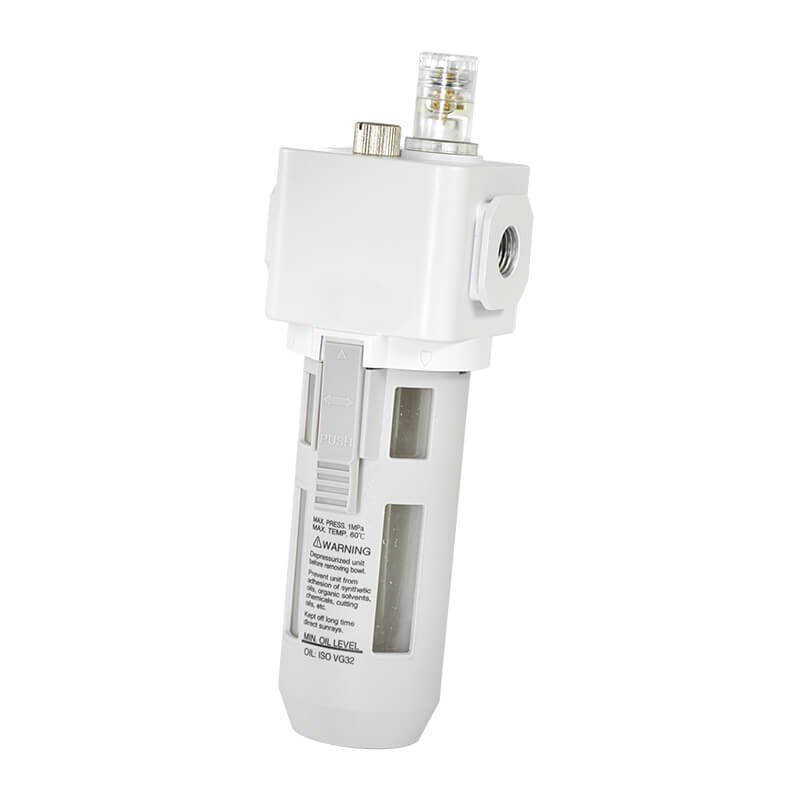

Mindman MAL302 Series: Air Combination Unit(Lubricator) – MAL302-10A

Name: Mindman MAL302 Series: Air Combination Unit(Lubricator) - MAL302-10A - Mindman
SKU: MAL302-10A
Price: 64.40 USD
Availability: InStock

SKU: MAL302-10A

$64.40

Air Combination Unit(Lubricator), Port Diameter: 10A(3/8), Bowl Material: PC Bowl, Level Switch: Without, Flow Direction: Left¡úRight, Bracket: Without, Port Thread: Rc Thread

10000 in stock

Click to view the Mindman MAL302 catalog.

Features
● Port Diameter Code 8A, 10A, 15A
● Port Diameter Size 1/4, 3/8, 1/2
● Operating Fluid Air
● Max Operating Pressure 1 MPa
● Withstand Pressure 1.5 MPa
● Ambient Temperature £5~£«60℃ (Non-Freezing)

Specification

Item	Specification
Bore No.	8A, 10A, 15A
Port size	1/4, 3/8, 1/2
Medium	Air
Max. operating pressure	1 MPa
Proof pressure	1.5 MPa
Ambient temperature	−5~+60°C (No freezing)
Lubricating oil capacity	65 cm³
Min. flow for oil drip	8A: 50 l/min, 10A, 15A: 60 l/min
Recommended lubricating oil	Turbine oil ISO-VG32
Optional attachment	C type bracket
Weight	345 g

Order Example

MAL302 Order Example

Mindman MAL302 Series: Air Combination Unit(Lubricator) – MAL302-10A
