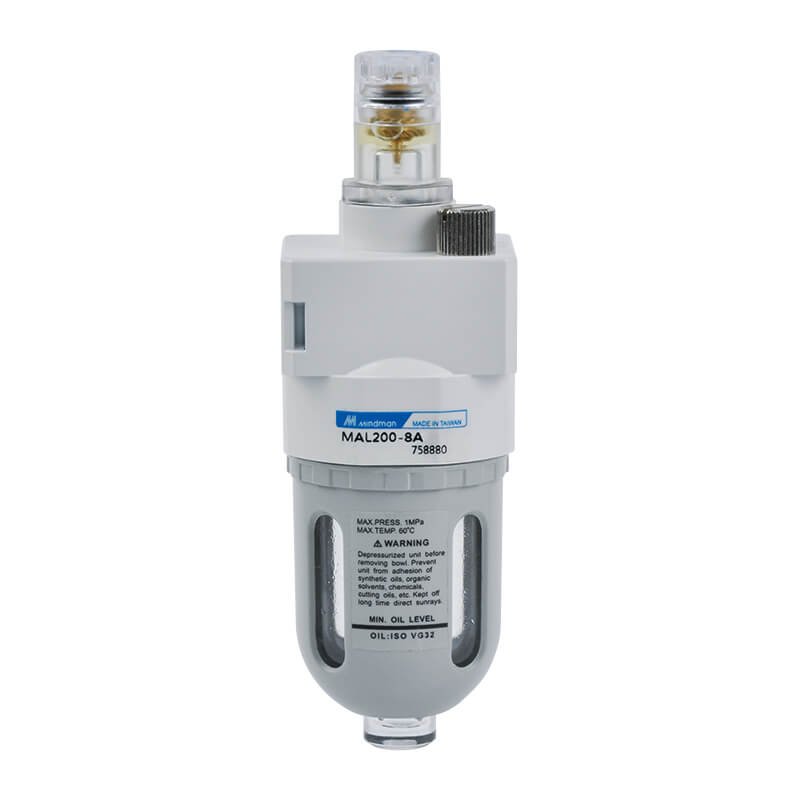

Mindman MAL200 Series: Air Combination Unit(Lubricator) – MAL200-8A-M-B

Name: Mindman MAL200 Series: Air Combination Unit(Lubricator) - MAL200-8A-M-B - Mindman
SKU: MAL200-8A-M-B
Price: 66.00 USD
Availability: InStock

SKU: MAL200-8A-M-B

$66.00

Air Combination Unit(Lubricator), Bowl Type: Standard, Port Diameter Code: 8A, Port Diameter Size: 1/4, Bowl Material: Metal Bowl, Flow Direction: Left¡úRight, Bracket: Without Bracket, Port Thread: Rc Thread

10000 in stock

Click to view the Mindman MAL200 catalog.

Features
● Port Diameter Code 6A, 8A
● Port Diameter Size 1/8, 1/4
● Operating Fluid Air
● Max Operating Pressure 1 MPa
● Withstand Pressure 1.5 MPa
● Ambient Temperature £5~£«60℃ (Non-Freezing)

Specification

Item	Specification
Bore No.	6A, 8A
Port size	1/8, 1/4
Medium	Air
Max. operating pressure	1 MPa
Proof pressure	1.5 MPa
Ambient temperature	−5~+60°C (No freezing)
Lubricating oil capacity	20 cm³
Min. flow for oil drip	35 l/min, 50 l/min
Recommended lubricating oil	Turbine oil ISO-VG32
Optional attachment	Bracket
Weight	150 g

Order Example

MAL200 Order Example

Mindman MAL200 Series: Air Combination Unit(Lubricator) – MAL200-8A-M-B
