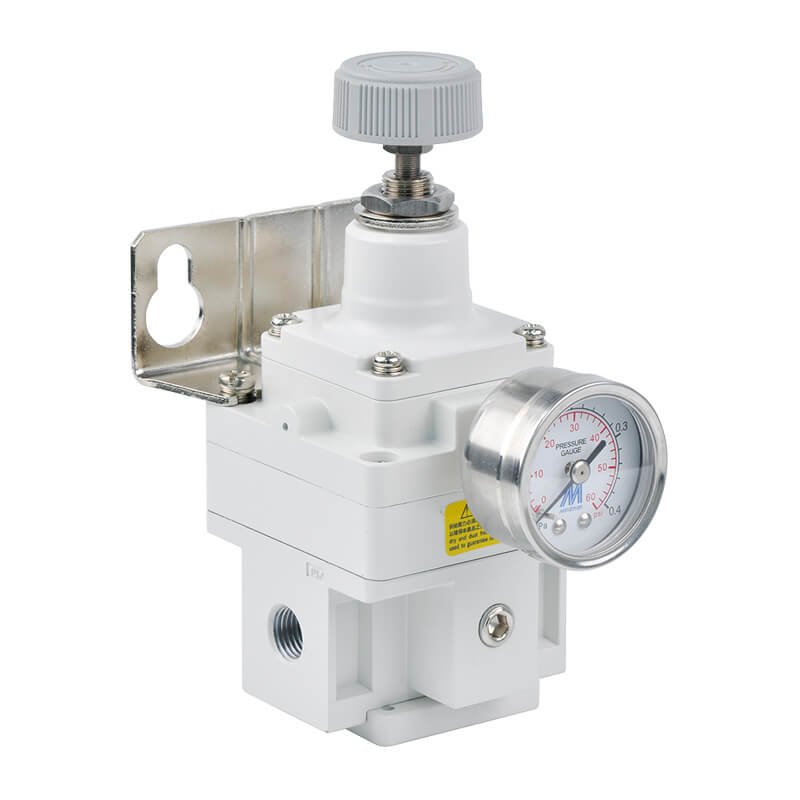

Mindman MAIR300 Series: Air Combination Unit(Precision Regulator) – MAIR300-10A-8K-G

Name: Mindman MAIR300 Series: Air Combination Unit(Precision Regulator) - MAIR300-10A-8K-G - Mindman
SKU: MAIR300-10A-8K-G
Price: 109.25 USD
Availability: InStock

SKU: MAIR300-10A-8K-G

$109.25

Air Combination Unit(Precision Regulator), Port Diameter Code: 10A, Port Diameter Size: 3/8, Set Pressure Range: 0.01~0.8 MPa, Pressure Gauge: Without Pressure Gauge, Flow Direction: Left¡úRight, Port Thread: G Thread

10000 in stock

Click to view the Mindman MAIR300 catalog.

Features
● Port Diameter Size: 1/2, 1/4, 3/8,
●Fluid: air, max operating pressure: 1 MPa, withstand pressure: 1.5 MPa

Specification

Item	Specification
Bore No.	8A, 10A, 15A
Port size	1/2, 1/4, 3/8
Medium	Air
Max. operating pressure range	1 MPa
Min. operating pressure	Setting pressure + 0.1 MPa
Proof pressure	1.5 MPa
Regulated pressure range	2K: 0.005~0.2 MPa, 4K: 0.01~0.4 MPa, 8K: 0.01~0.8 MPa
Sensitivity	Within 0.2% of full span
Repeatability	Within ±0.5% of full span
Air consumption (※)	11.5 l/min(ANR) of full span
Ambient temperature	−5~+60°C (No freezing)
Attachment	Bracket
Option	Pressure gauge (PG-40S)
Weight	875 g
Remark	※1. For supply pressure 1 MPa. ※2. Air is normally being discharged to the atmosphere from a bleed hole or an exhaust port.

Order Example

MAIR300 Order Example

Mindman MAIR300 Series: Air Combination Unit(Precision Regulator) – MAIR300-10A-8K-G
