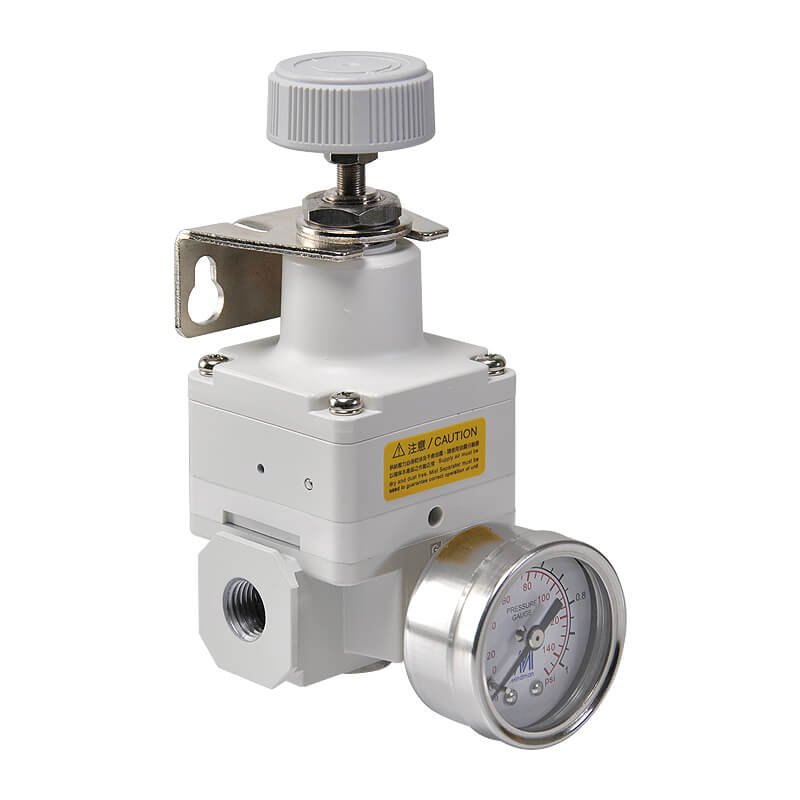

Mindman MAIR200 Series: Air Combination Unit(Precision Regulator) – MAIR200-8A-4K-C-R

Name: Mindman MAIR200 Series: Air Combination Unit(Precision Regulator) - MAIR200-8A-4K-C-R - Mindman
SKU: MAIR200-8A-4K-C-R
Price: 95.00 USD
Availability: InStock

SKU: MAIR200-8A-4K-C-R

$95.00

Air Combination Unit(Precision Regulator), Port Diameter Code: 8A, Port Diameter Size: 1/4, Set Pressure Range: 0.01~0.4 MPa, Pressure Gauge: With Pressure Gauge(PG-40S), Flow Direction: Right¡úLeft, Port Thread: Rc Thread

10000 in stock

Click to view the Mindman MAIR200 catalog.

Features
● Port Diameter Size: 1/4,
● Operating Fluid: Air,
●Max operating pressure: 1 MPa, withstand pressure: 1.5 MPa

Specification

Item	Specification
Bore No.	8A
Port size	1/4
Medium	Air
Max. operating pressure range	1 MPa
Min. operating pressure	Setting pressure + 0.05 MPa
Proof pressure	1.5 MPa
Regulated pressure range	2K: 0.005~0.2 MPa, 4K: 0.01~0.4 MPa, 8K: 0.01~0.8 MPa
Sensitivity	Within 0.2% of full span
Repeatability	Within ±0.5% of full span
Air consumption (※)	4.4 l/min(ANR)
Ambient temperature	−5~+60°C (No freezing)
Attachment	Bracket
Option	Pressure gauge (PG-40S)
Weight	300 g
Remark	※1. For supply pressure 1 MPa. ※2. Air is normally being discharged to the atmosphere from a bleed hole or an exhaust port.

Order Example

MAIR200 Order Example

Mindman MAIR200 Series: Air Combination Unit(Precision Regulator) – MAIR200-8A-4K-C-R
