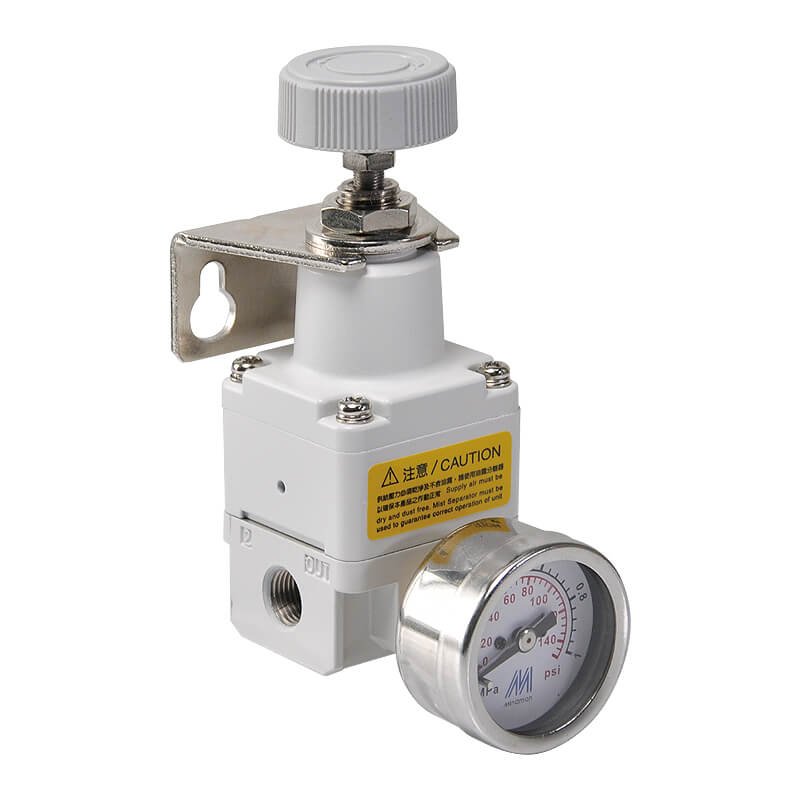

Mindman MAIR100 Series: Air Combination Unit(Precision Regulator) – MAIR100-6A-4K-C

Name: Mindman MAIR100 Series: Air Combination Unit(Precision Regulator) - MAIR100-6A-4K-C - Mindman
SKU: MAIR100-6A-4K-C
Price: 76.00 USD
Availability: InStock

SKU: MAIR100-6A-4K-C

$76.00

Air Combination Unit(Precision Regulator), Port Diameter Code: 6A, Port Diameter Size: 1/8, Set Pressure Range: 0.01~0.4 MPa, Pressure Gauge: With Pressure Gauge(PG-33S), Flow Direction: Left¡úRight, Port Thread: Rc Thread

10000 in stock

Click to view the Mindman MAIR100 catalog.

Features
● Port Diameter Size: 1/8,
● Operating Fluid: Air,
●Max operating pressure: 1 MPa, withstand pressure: 1.5 MPa.

Specification

Item	Specification
Bore No.	6A
Port size	1/8
Medium	Air
Operating pressure range	1 MPa
Proof pressure	1.5 MPa
Regulated pressure range	2K: 0.005~0.2 MPa, 4K: 0.01~0.4 MPa, 8K: 0.01~0.8 MPa
Sensitivity	Within(E) 0.2% of full span
Repeatability	Within(E) ±0.5% of full span
Air consumption (※)	4.4 l/min(ANR)
Ambient temperature	−5~+60°C (No freezing)
Attachment	Bracket
Option	Pressure gauge (PG-33S)
Weight	150 g
Remark	※1. For supply pressure 1 MPa. ※2. Air is normally being discharged to the atmosphere from a bleed hole or an exhaust port.

Order Example

MAIR100 Order Example

Mindman MAIR100 Series: Air Combination Unit(Precision Regulator) – MAIR100-6A-4K-C
