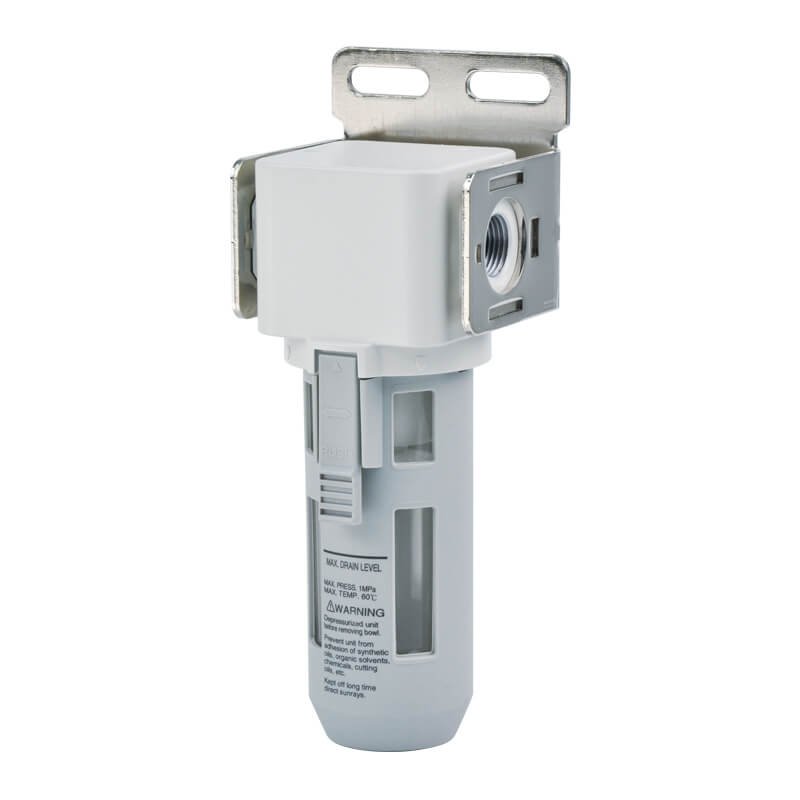

Mindman MAFV302 Series: Air Combination Unit(Vacuum Filter) – MAFV302-8A-N-G
$70.00
Air Combination Unit(Vacuum Filter), Port Diameter Code: 8A, Port Diameter Size: 1/4, Bowl Material: Nylon Bowl, Filtration Rating: 5¦μm, Bracket: Without Bracket, Port Thread: G Thread
10000 in stock
Features
● Removes water droplets and contaminants to ensure vacuum-supply quality.
● Max air throughput 240 L/min at 4 kPa pressure loss.
● The nylon bowl suits a variety of environments.
| Item | Specification |
|---|---|
| Bore No. | 8A, 10A, 15A |
| Port size | 1/4, 3/8, 1/2 |
| Medium | Air |
| Operating perssure range | −100~0 kPa |
| Proof pressure | 0.5 MPa |
| Ambient temperature | −5~+60°C (No freezing) |
| Drain capacity | 35 cm³ |
| Filter element | 5 µm |
| Optional attachment | C type bracket |
| Weight | 333 g |
