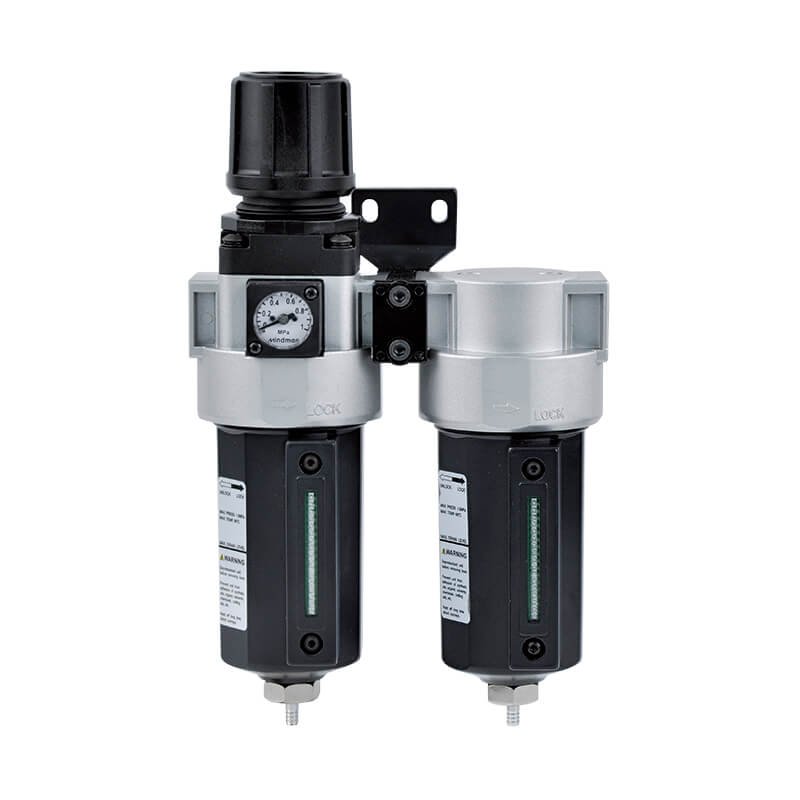

Mindman MAFRF401AD Series: Air Combination Unit(Precision Filter-Regulator) – MAFRF401AD-10A-AD-B-G

Name: Mindman MAFRF401AD Series: Air Combination Unit(Precision Filter-Regulator) - MAFRF401AD-10A-AD-B-G - Mindman
SKU: MAFRF401AD-10A-AD-B-G
Price: 146.10 USD
Availability: InStock

SKU: MAFRF401AD-10A-AD-B-G

$146.10

Air Combination Unit(Precision Filter-Regulator), Filtration Rating: 5¦μm+0.3¦μm, Port Diameter: 10A(3/8), Appearance Color: Black&Silver, Type: Standard, Pressure Gauge: Pressure Gauge Manifold(A-MAR401), Drain Valve: Auto Drain Valve(FMRF300), Flow Direction: Left¡úRight, Digital Pressure Sensor: Without, Bracket: C Type, Port Thread: G Thread

10000 in stock

Click to view the Mindman MAFRF401AD catalog.

Features
● Port Diameter Code 8A, 10A, 15A
● Port Diameter Size 1/4, 3/8, 1/2
●Max operating pressure (Note) 0.05~1.5 MPa
● Set Pressure Range Standard: 0.1~0.85 MPa, High-Pressure Type: 0.1~1.5 Mpa
● Withstand Pressure 2 MPa
● Ambient Temperature £5~£«60℃ (Non-Freezing)
● Filtration Rating 5¦μm+0.3¦μm

Specification

Item	Specification
Bore No.	8A, 10A, 15A
Port size	1/4, 3/8, 1/2
Medium	Air
Operating pressure range(※)	0.05~1.5 MPa
Proof pressure	2 MPa
Regulated pressure range	Standard type: 0.1~0.85 MPa , High pressure type: 0.1~1.5 MPa
Ambient temperature	−5~+60°C (No freezing)
Filter element	5µm+0.3µm
Standard attachment	Pressure gauge (PG-20), L type bracket
Optional attachment	C type bracket
Weight	1453 g
Remark	※1.Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa. ※2.Choose auto-drain FMRF300, the pressure range is 0.15 ~ 1 MPa.

Order Example

MAFRF401AD Order Example
