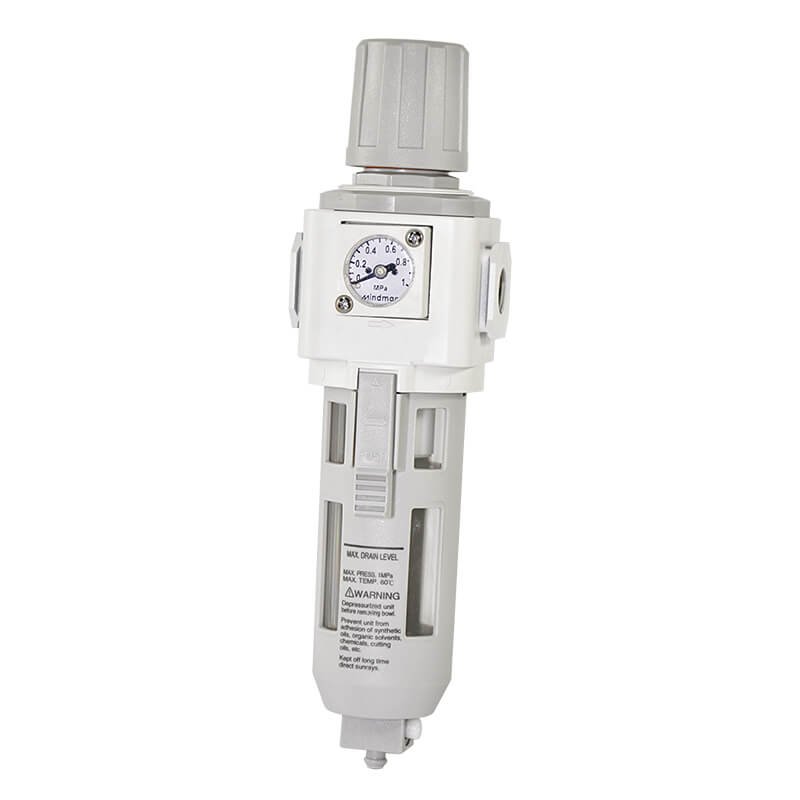

Mindman MAFR302 Series: Air Combination Unit(Filter-Regulator) – MAFR302-10A-2L

Name: Mindman MAFR302 Series: Air Combination Unit(Filter-Regulator) - MAFR302-10A-2L - Mindman
SKU: MAFR302-10A-2L
Price: 90.85 USD
Availability: InStock

SKU: MAFR302-10A-2L

$90.85

Air Combination Unit(Filter-Regulator), Regulation Type: Standard, Port Diameter: 3/8, Relief Type: Relief Type, Bowl Material: PC Bowl, Pressure Gauge: Pressure Gauge(PG-20), Drain Valve: Semi-Auto Drain Water, Flow Direction: Left¡úRight, Digital Pressure Sensor: Without, Filtration Rating: 5¦μm, Bracket: L Type, Shut-off Valve: MVHR-302S-3H-AC220-L

10000 in stock

Click to view the Mindman MAFR302 catalog.

Features
● Port Diameter Code 8A, 10A, 15A
● Port Diameter Size 1/4, 3/8, 1/2
● Operating Fluid Air
● Operating Pressure Range (¡ù) 0.05~1 MPa
● Set Pressure Range 0.05~0.85 MPa
● Withstand Pressure 1.5 MPa
● Ambient Temperature £5~£«60℃ (Non-Freezing)
●Filtration: standard 5¦μm, optional 40¦μm

Specification

Item	Specification
Bore No.	8A, 10A, 15A
Port size	1/4, 3/8, 1/2
Medium	Air
Operating pressure range (※)	0.05~1 MPa
Proof pressure	1.5 MPa
Regulated pressure range	0.05~0.85 MPa
Ambient temperature	−5~+60°C (no freezing)
Filter element	Standard: 5µm Option: 40µm
Drain capacity	35 cm³
Standard attachment	Pressure gauge (PG-20), L type bracket
Optional attachment	Z type bracket
Weight	490 g
Remark	※1. Standard Unit contains semi-auto-drain function when operating pressure below 0.05 MPa. ※2. Choose auto-drain FMRF300, the pressure rang is 0.15~1 MPa.

Order Example

MAFR302 Order Example

Mindman MAFR302 Series: Air Combination Unit(Filter-Regulator) – MAFR302-10A-2L
