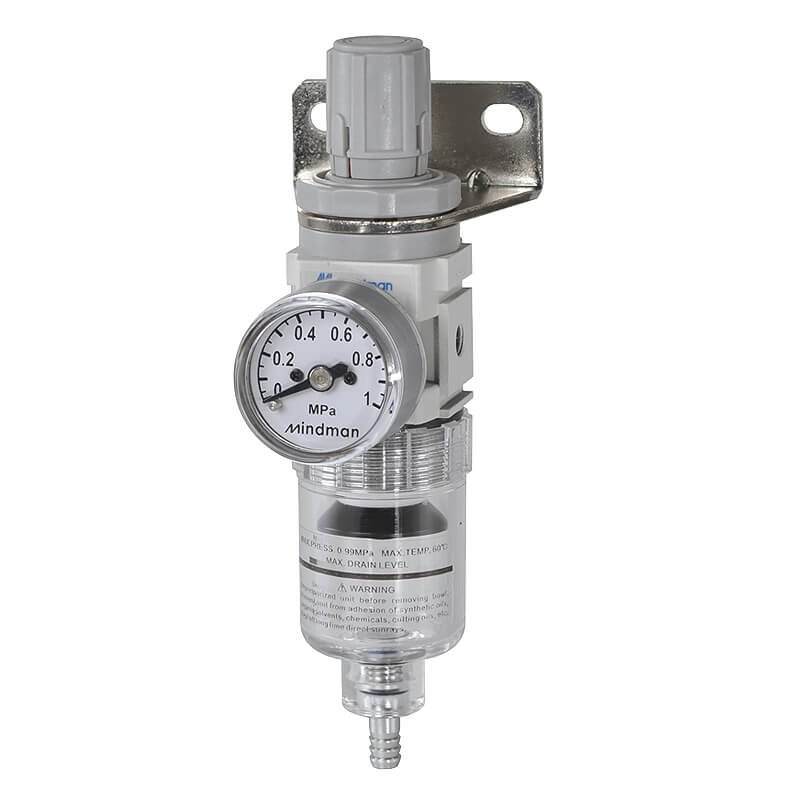

Mindman MAFR100 Series: Air Combination Unit(Filter-Regulator) – MAFR100-M5
SKU: MAFR100-M5
$43.45
Air Combination Unit(Filter-Regulator), Port Diameter: M5¡Á0.8, Flow Direction: Left¡úRight, Filtration Rating: 5¦μm
10000 in stock
Features
Port Diameter Size: M5 x 0.8,
Operating Pressure Range: 0.05~1 MPa,
Withstand Pressure: 1.5 MPaII
Specification
| Item | Specification |
|---|---|
| Port size | M5 × 0.8 |
| Medium | Air |
| Operating pressure range | 0.05~1 MPa |
| Proof pressure | 1.5 MPa |
| Regulated pressure range | 0.05~0.7 MPa |
| Ambient temperature | −5~+60°C (No freezing) |
| Filter element | Standard: 5µm Option: 40µm |
| Drain capacity | 3.5 cm³ |
| Standard attachment | Pressure gauge (PG-25), L type bracket |
| Weight | 130 g |
