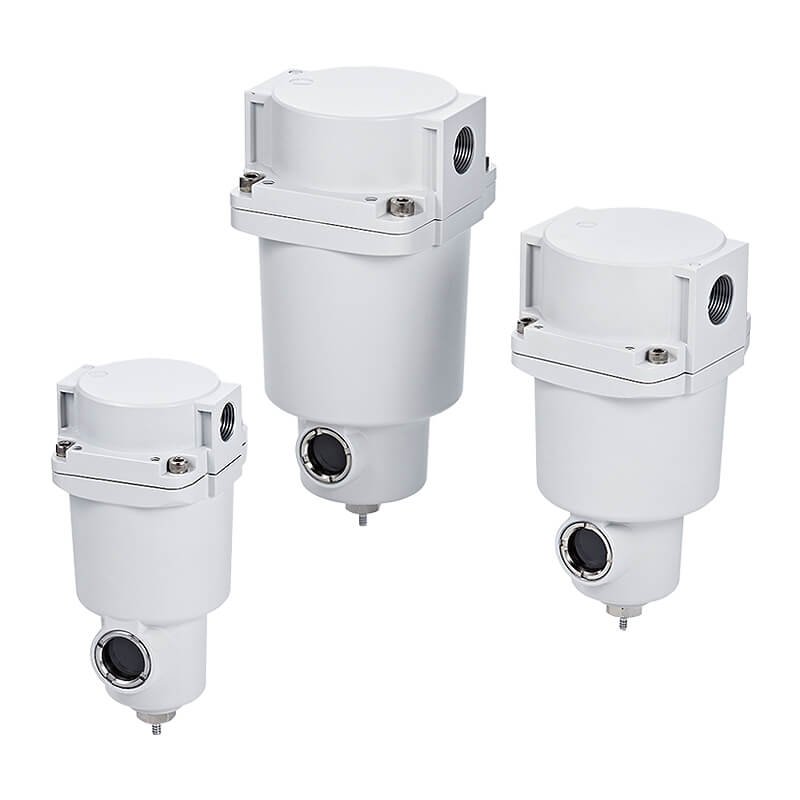

Mindman MAF501 Series: Air Combination Unit(Precision Filter) – MAF501D-20A-DR

Name: Mindman MAF501 Series: Air Combination Unit(Precision Filter) - MAF501D-20A-DR - Mindman
SKU: MAF501D-20A-DR
Price: 176.20 USD
Availability: InStock

SKU: MAF501D-20A-DR

$176.20

Air Combination Unit(Precision Filter), Filtration Rating: 0.3¦μm, Port Diameter: 3/4, Bowl Material: PC Bowl, Drain Valve: Auto Drain Valve(FMRF300), Flow Direction: Right¡úLeft, Bracket: Without, Port Thread: Rc Thread

10000 in stock

Click to view the Mindman MAF501 catalog.

Features
●Removes dust and foreign matter above 3¦μm from compressed air. Extends the precision filter element
the service life and reducing actuator failure rate.

Specification

Item	Specification
Bore No.	20A, 25A
Port size	3/4, 1
Medium	Air
Operating pressure range (※)	Nylon bowl, PC bowl: 0.05~1 MPa Metal bowl: 0.05~1.5 MPa
Proof pressure	Nylon bowl, PC bowl: 1.5 MPa Metal bowl: 2 MPa
Ambient temperature	−5~+60°C (No freezing)
Filter element	40 µm
Drain capacity	Nylon bowl, PC bowl: 75 cm³ Metal bowl: 70 cm³
Optional attachment	L type bracket
Weight	PC, Nylon bowl: 1180g / Metal bowl: 1300g
Remark	※1. Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa. ※2. Choose auto-drain FMRF300, the pressure range is 0.15~1 MPa.

Order Example

MAF501 Order Example

Mindman MAF501 Series: Air Combination Unit(Precision Filter) – MAF501D-20A-DR
