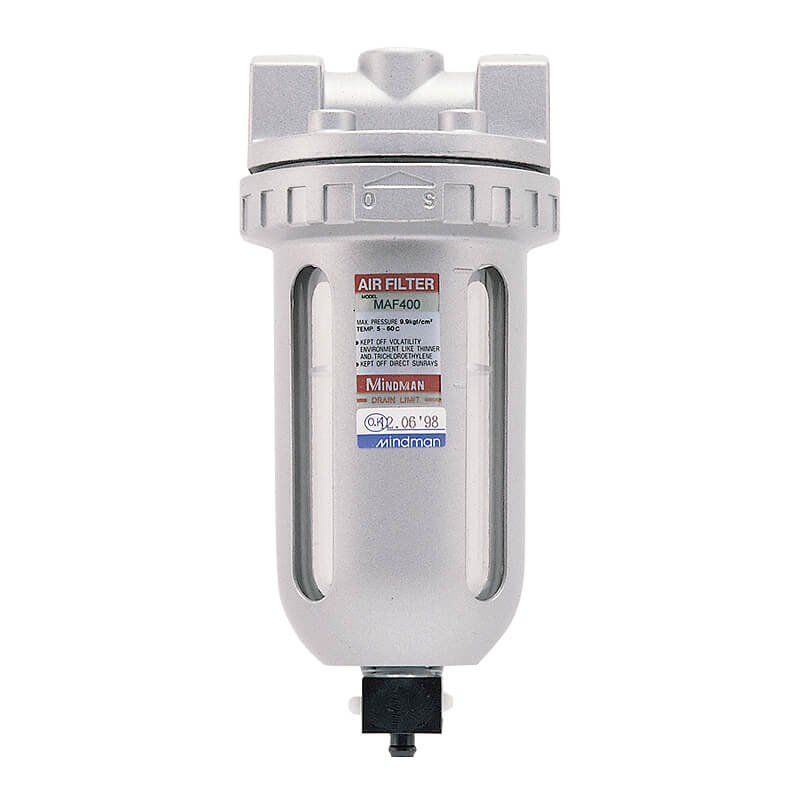

Mindman MAF400 Series: Air Combination Unit(Filter) – MAF400-10A-B

Name: Mindman MAF400 Series: Air Combination Unit(Filter) - MAF400-10A-B - Mindman
SKU: MAF400-10A-B
Price: 65.55 USD
Availability: InStock

SKU: MAF400-10A-B

$65.55

Air Combination Unit(Filter), Port Diameter: 10A(3/8), Bowl Material: PC Bowl, Drain Valve: Semi-Auto Drain Water, Flow Direction: Left¡úRight, Filtration Rating: 40¦μm, Bracket: L Type Bracket, Port Thread: Rc Thread

10000 in stock

Click to view the Mindman MAF400 catalog.

Features
● Port Diameter Code 8A, 10A, 15A
● Port Diameter Size 1/4, 3/8, 1/2
● Operating Fluid Air
● Max Operating Pressure (¡ù1.2) 0.05~1 MPa
● Withstand Pressure 1.5 MPa
● Ambient Temperature £5~£«60℃ (Non-Freezing)
●Filtration: standard 40¦μm, optional 5¦μm

Specification

Item	Specification
Bore No.	8A, 10A, 15A
Port size	1/4, 3/8, 1/2
Medium	Air
Operating pressure range (※1.2.)	0.05~1 MPa
Proof pressure	1.5 MPa
Ambient temperature	−5~+60°C (No freezing)
Filter element	Standard: 40µm Option: 5µm
Drain capacity	100 cm³
Max. flow rate (※3) l/min.(ANR)	1500, 2000, 2200
Optional attachment	L type bracket
Weight	550 g
Remark	※1. Sandard unit contains semi-auto-drain function when operating pressure below 0.05 MPa. ※2. Choose auto-drain FMRF300, the pressure range is 0.15~1 MPa. ※3. Flow is at pressure P=0.7 MPa with pressure drop △P=0.03 MPa.

Order Example

MAF400 Order Example

Mindman MAF400 Series: Air Combination Unit(Filter) – MAF400-10A-B
