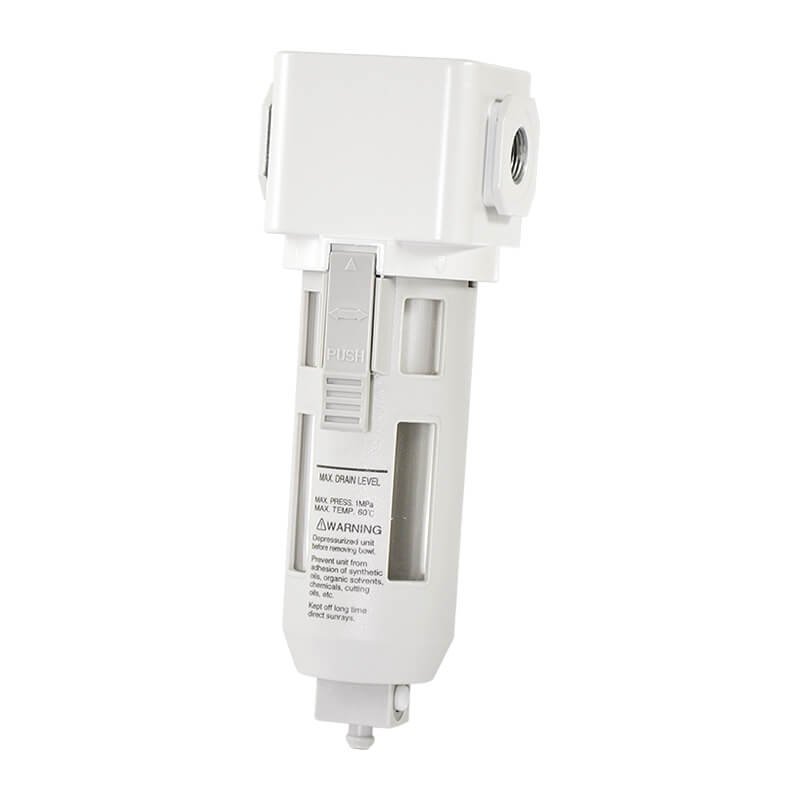

Mindman MAF302D-M Series: Air Combination Unit(Precision Filter) – MAF302D-10A-D-G

Name: Mindman MAF302D-M Series: Air Combination Unit(Precision Filter) - MAF302D-10A-D-G - Mindman
SKU: MAF302D-10A-D-G
Price: 117.70 USD
Availability: InStock

SKU: MAF302D-10A-D-G

$117.70

Air Combination Unit(Precision Filter), Filtration Rating: 0.3¦μm, Port Diameter: 3/8, Bowl Material: PC Bowl, Drain Valve: Auto Drain Valve FMRF300, Flow Direction: Left¡úRight, Bracket: Without Bracket, Port Thread: G Thread

10000 in stock

Click to view the Mindman MAF302D-M catalog.

Features
● Port Diameter Code 8A, 10A, 15A
● Port Diameter Size 1/4, 3/8, 1/2
● Operating Fluid Air
● Operating Pressure Range (¡ù) 0.05~1 MPa
● Withstand Pressure 1.5 MPa
● Ambient Temperature £5~£«60℃ (Non-Freezing)
●Filtration: standard 5¦μm, optional 40¦μm

Specification

Item	Specification
Bore No.	8A, 10A, 15A
Port size	1/4, 3/8, 1/2
Medium	Air
Operating pressure range(※)	0.05~1 MPa
Proof pressure	1.5 MPa
Ambient temperature	−5°C~+60°C (No freezing)
Filter element	0.3µm ,0.01µm
Drain capacity	35 cm³
Optional attachment	C type bracket
Weight	365 g
Remark	※1.Standard Unit contains semi-auto-drain function when operating pressure below 0.05 MPa. ※2.Choose auto-drain FMRF300,the pressure range is 0.15~1MPa.

Order Example

MAF302D-M Order Example

Mindman MAF302D-M Series: Air Combination Unit(Precision Filter) – MAF302D-10A-D-G
