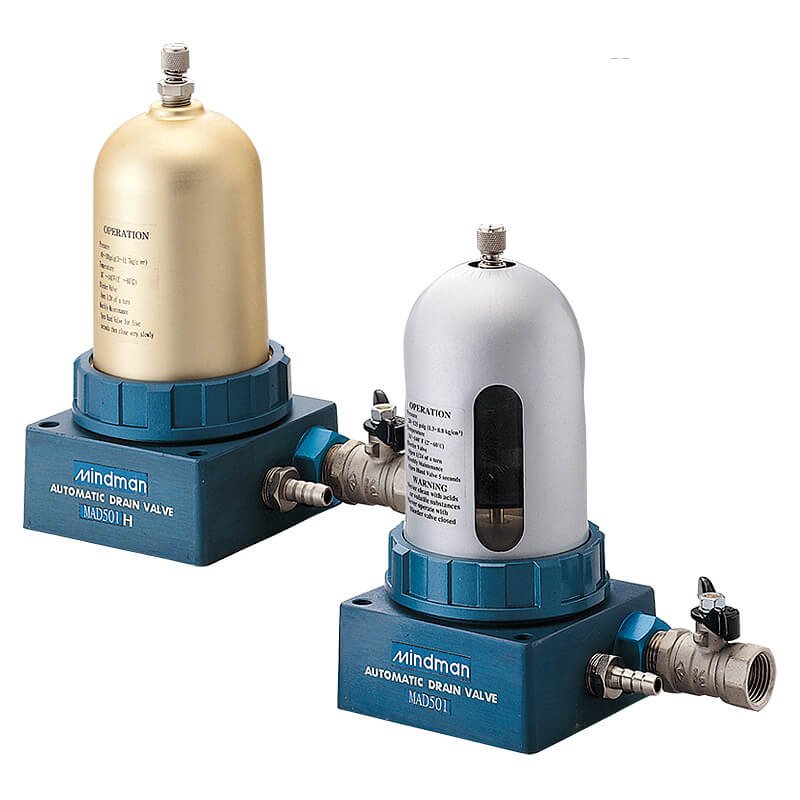

Mindman MAD501 Series: Auto Drainer(Continuous-Drain Type) – MAD501
SKU: MAD501
$60.75
Auto Drainer(Continuous-Drain Type), Water Trap Material: PC Clear, Inlet: Rc1/2, Manual Drain Port: Rc1/2, Auto Drain Port: Rc3/8 5/16HOSE, Port Thread: Rc Thread(G/NPT Available)
9996 in stock
Features
●Cleans compressed air to extend the life of pneumatic parts.
●No power needed.
●Easy to install without space limitations.
Specification
| Item | Specification |
|---|---|
| Dimensions | 160mm × 100mm × 200mm |
| Inlet | Rc1/2 |
| Outlet | Rc1/2 |
| Automatic outlet | Rc3/8, 5/16" HOSE |
| Operating pressure range (※) | MAD501: 0.13~0.88 MPa MAD501H: 0.3~1.27 MPa |
| Ambient temperature | +2~+60°C |
| Min. equipment requirement | MAD501: 180 l/min (about l HP) MAD501H: 250 l/min (about 2 HP) |
| Max. condensate discharge rate | MAD501: 15 gal/hour (57 l/h) MAD501H: 12 gal/hour (46 l/h) |
| Bowl | MAD501: Polycarbonate (PC) MAD501H: Aluminium |
| Weight | 1.3 kg, 1.4 kg |
| Remark | ※1. Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa. ※2. Port thread G, NPT are also available. |
